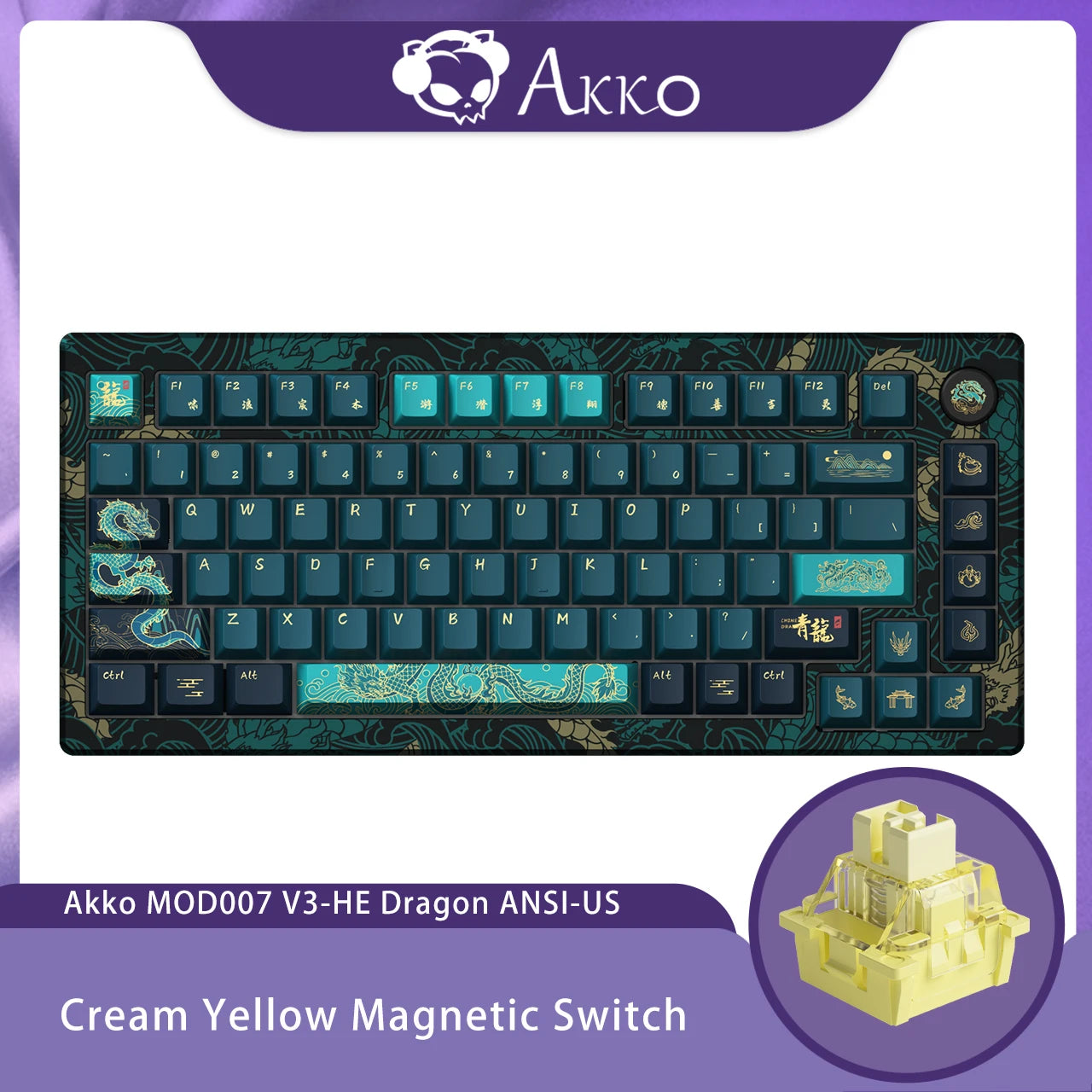

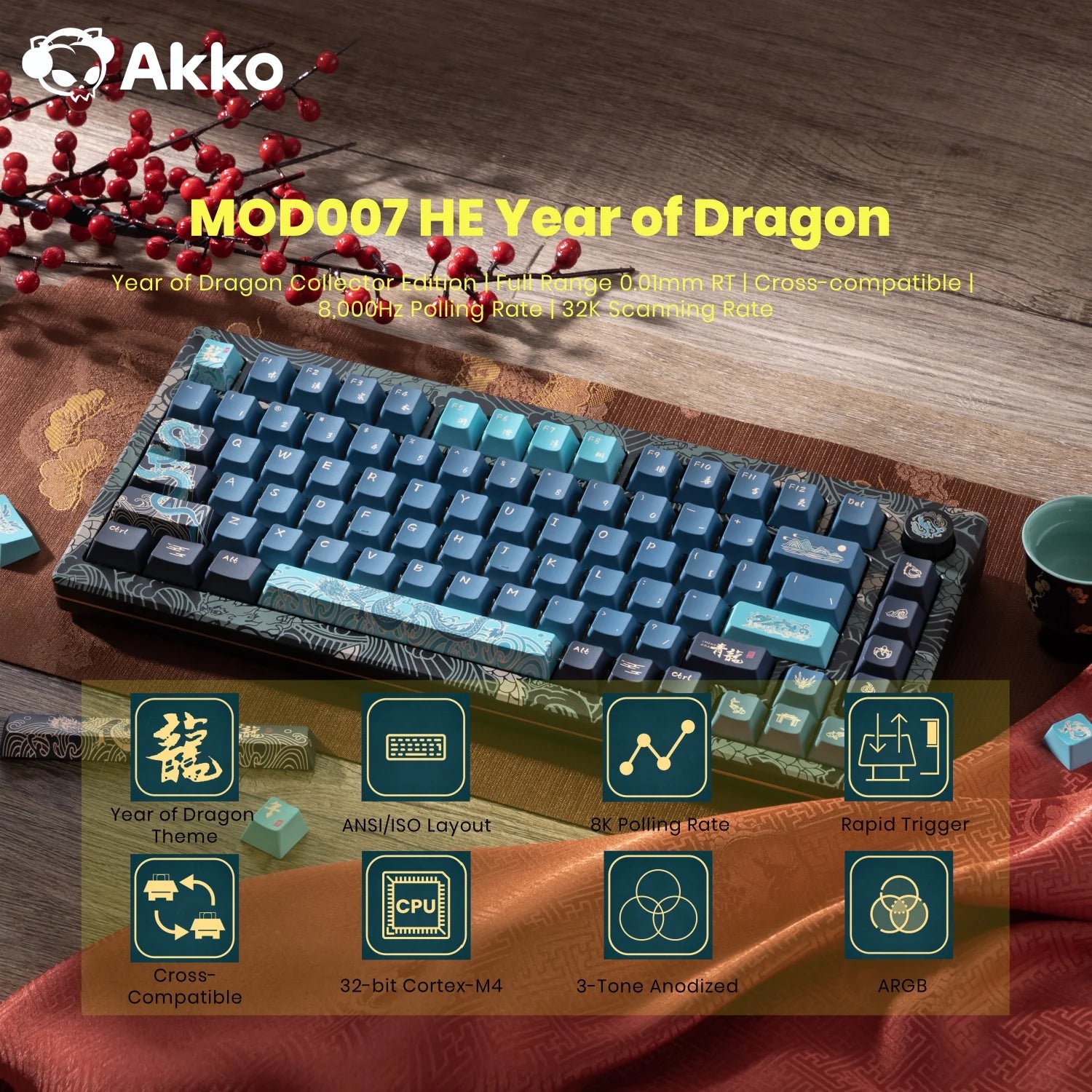

MOD 007 HE Year of Dragon

Year of Dragon Collector Edition | Full Range 0.01mm RT | Cross-compatible | 8,000Hz Polling Rate | 32K Scanning Rate

Model	MOD 007 HE Year of Dragon V2	MOD 007 HE Year of Dragon V2	MOD 007 HE Year of Dragon V1
Layout	ISO-DE/FR/UK	US-ANSI	US-ANSI
Mount	Gasket Mount	Gasket Mount	Gasket Mount
Case	CNC Aluminum; Three Tone Anodization; PVD Weight.	CNC Aluminum; Three Tone Anodization; PVD Weight.	CNC Aluminum; Three Tone Anodization; Aluminum Weight.
Connectivity	USB-C	USB-C	USB-C
LED	ARGB(500Hz Refresh Rate)	ARGB(500Hz Refresh Rate)	RGB
Polling Rate	8,000Hz	8,000Hz	8,000Hz
Scanning Rate	32,000Hz	32,000Hz	8,000Hz
Magnetic Switch Cross-Compatibility	Support	Support	N/A
Switch	Akko Astrolink Magnetic Switch	Akko Astrolink Magnetic Switch	Akko Cream Yellow Magnetic Switch
RT Stabilizer	Support	Support	N/A
RT Accuracy	0.01-3.40mm	0.01-3.40mm	0.01-3.40mm
Acutation Range	0.1-3.40mm	0.1-3.40mm	0.1-3.40mm
Layer	3mm Poron Plate Foam/0.3mm IXPE Switch Pad/0.1mm PET Layer/1mm VHB Layer/5mm Case Foam	3mm Poron Plate Foam/0.3mm IXPE Switch Pad/0.1mm PET Layer/1mm VHB Layer/5mm Case Foam	3mm Poron Plate Foam/0.5mm IXPE Switch Pad/1mm Poron Case Foam
Keycap	Cherry Profile Dye-sub PBT Keycaps; Extra Keycaps: Mac, ISO-FR, ISO-UK and Basic.	Cherry Profile Dye-sub PBT Keycaps; Extra Keycaps: Basic.	Cherry Profile Dye-sub PBT Keycaps; Extra Keycaps: Basic.
Stabilizer	Pre-Lubed Demagnetized Plate-Mounted Stabilizer	Pre-Lubed Demagnetized Plate-Mounted Stabilizer	Pre-Lubed Demagnetized Plate-Mounted Stabilizer
Plate	Pre-installed Aluminum Plate; Comes with FR4 Plate.	Pre-installed Aluminum Plate; Comes with FR5 Plate.	Pre-installed FR4 Plate; Comes with Copper Plate.
Software	Akko Cloud Driver	Akko Cloud Driver	Akko Cloud Driver
Dimensions	333*141*33mm	333*141*33mm	333*141*33mm
Weight	Approximately 2KG	Approximately 2KG	Approximately 2KG
Package List	Keyboard×1, Manual×1, Cable×1, Supplementary Keycaps, Keycap Puller×1, Switch Puller×1, Dust Cover×1, FR4 Plate×1, Spanner, Screws.	Keyboard×1, Manual×1, Cable×1, Supplementary Keycaps, Keycap Puller×1, Switch Puller×1, Dust Cover×1, FR4 Plate×1, Spanner, Screws.	Keyboard×1, Manual×1, Cable×1, Supplementary Keycaps, Keycap Puller×1, Switch Puller×1, Dust Cover×1, FR4 Plate×1, Spanner, Screws.

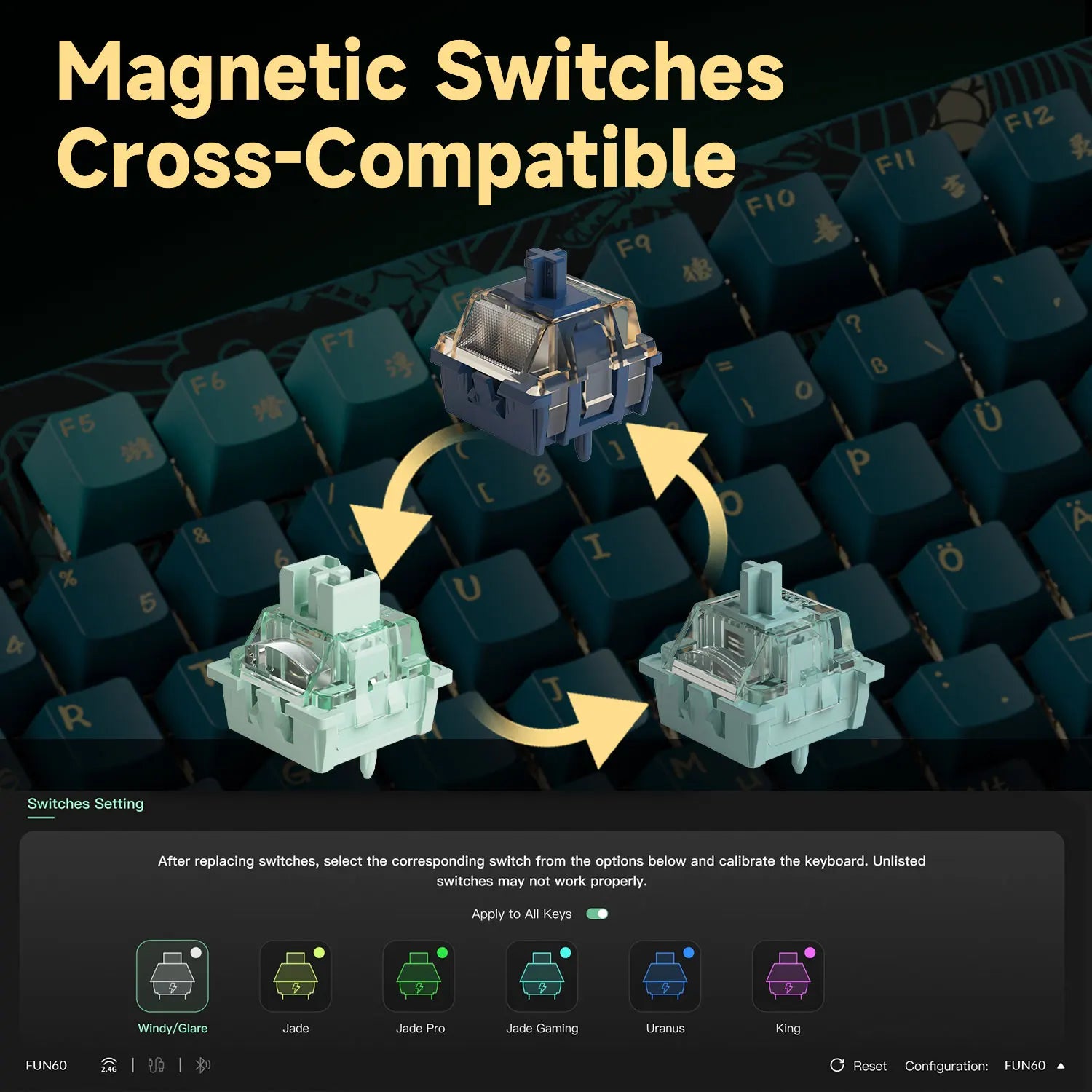

Cross-Compatible with Mainstream Magnetic Switches

MOD 007 HE Year of Dragon(V2) provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.

Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.

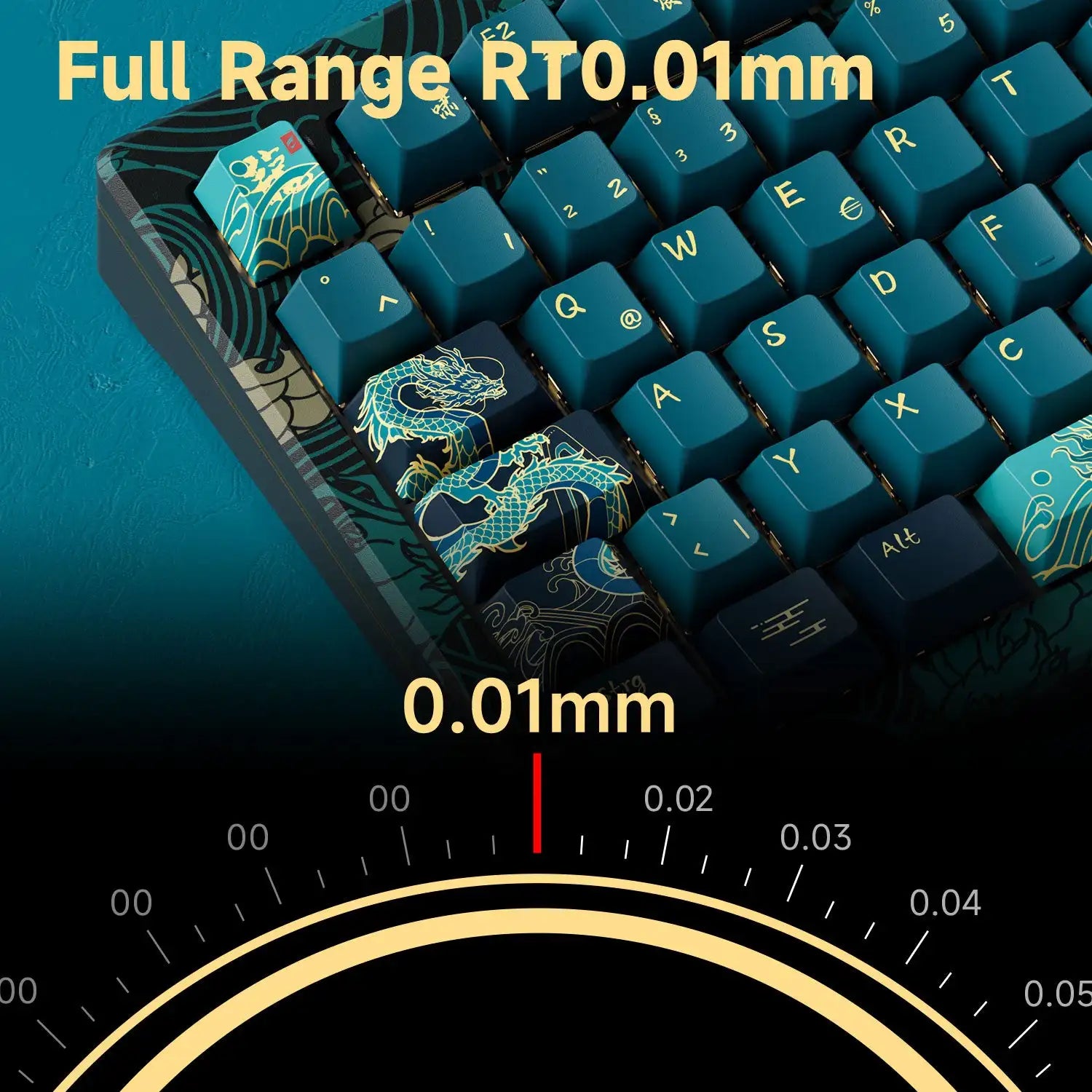

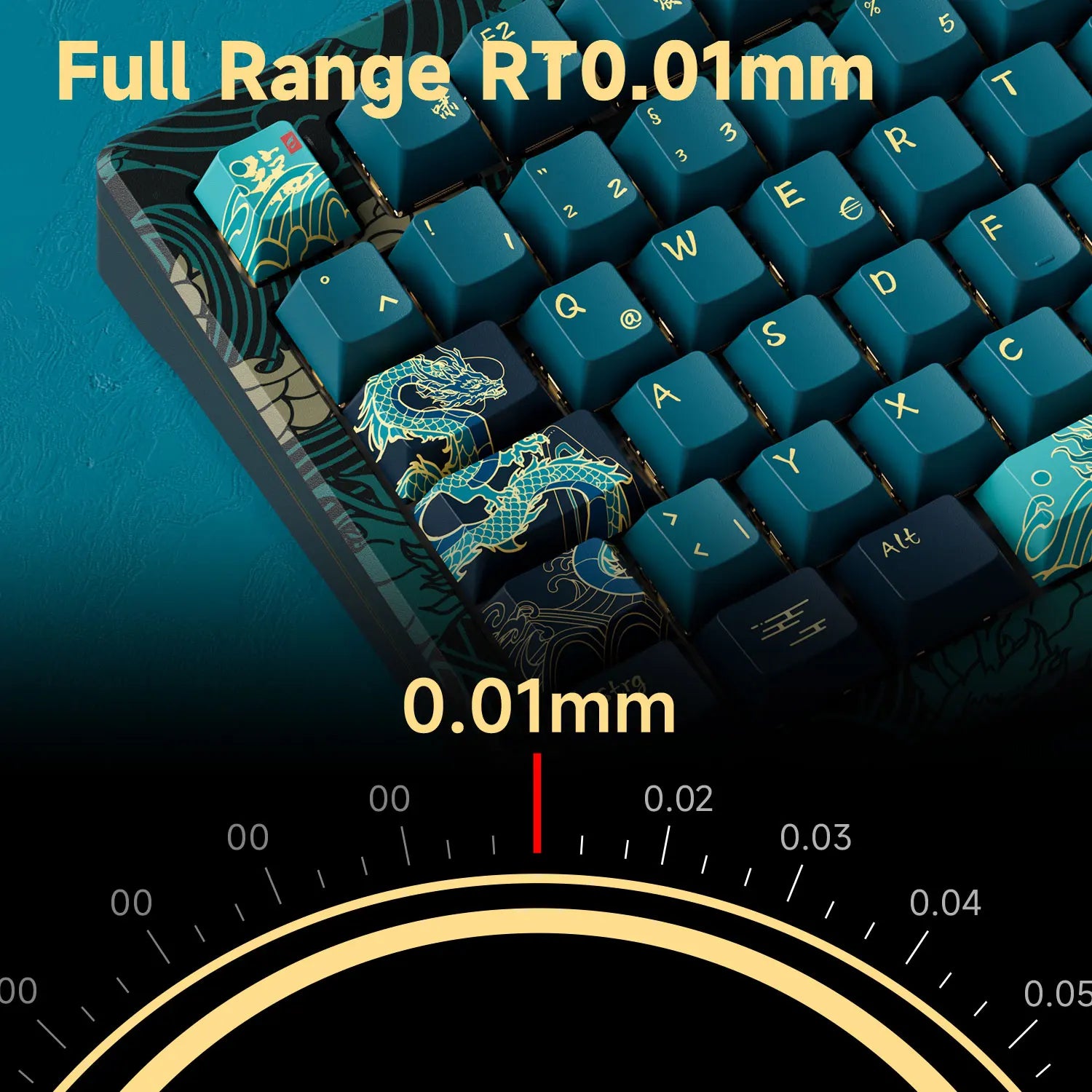

Full Range RT0.01mm

MOD 007 HE Year of Dragon (V2) attain ultra-precise 0.01mm Rapid Trigger and adjustable actuation distance in 0.01mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.

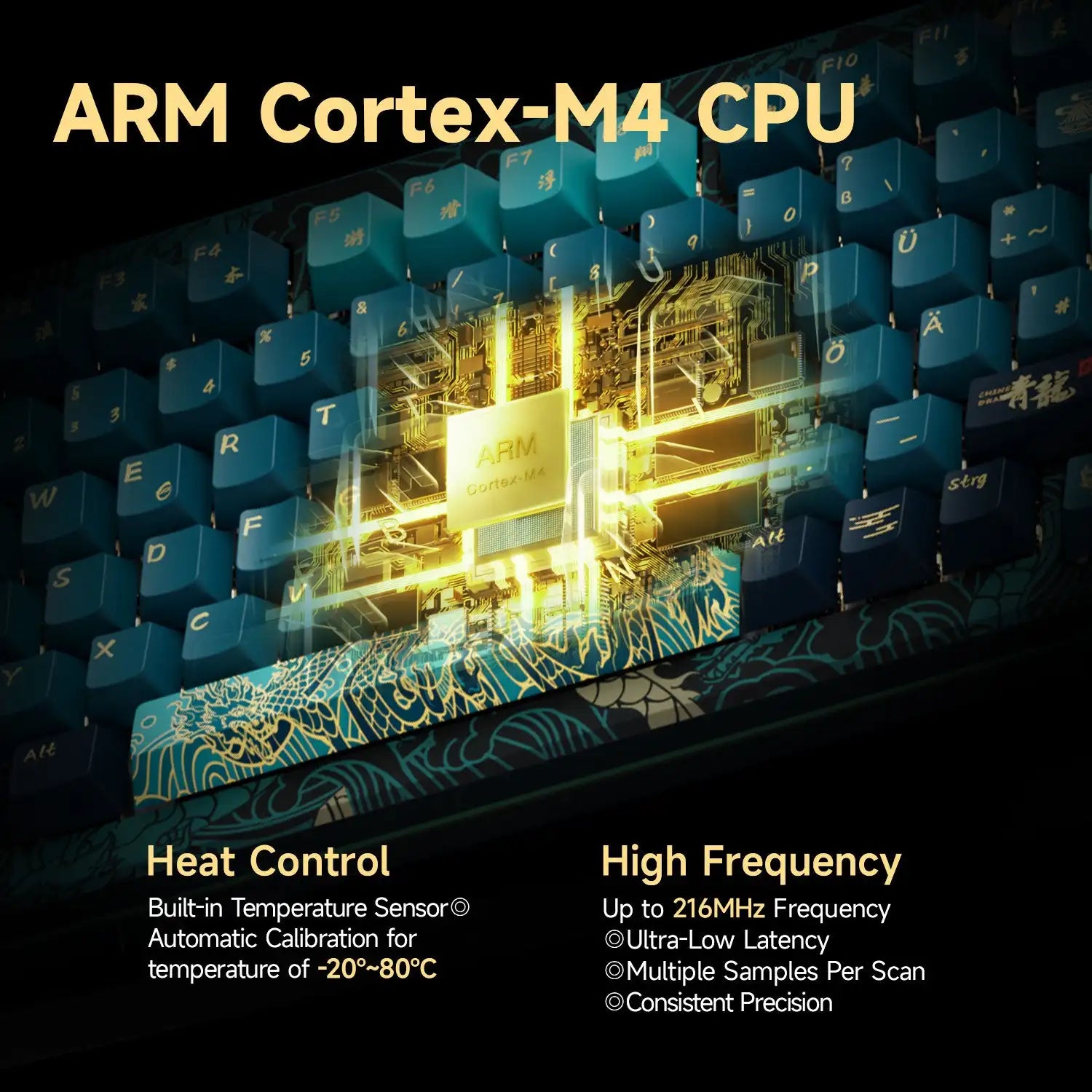

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance(for the V2 only).

Universal 8K Polling Rate

With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.

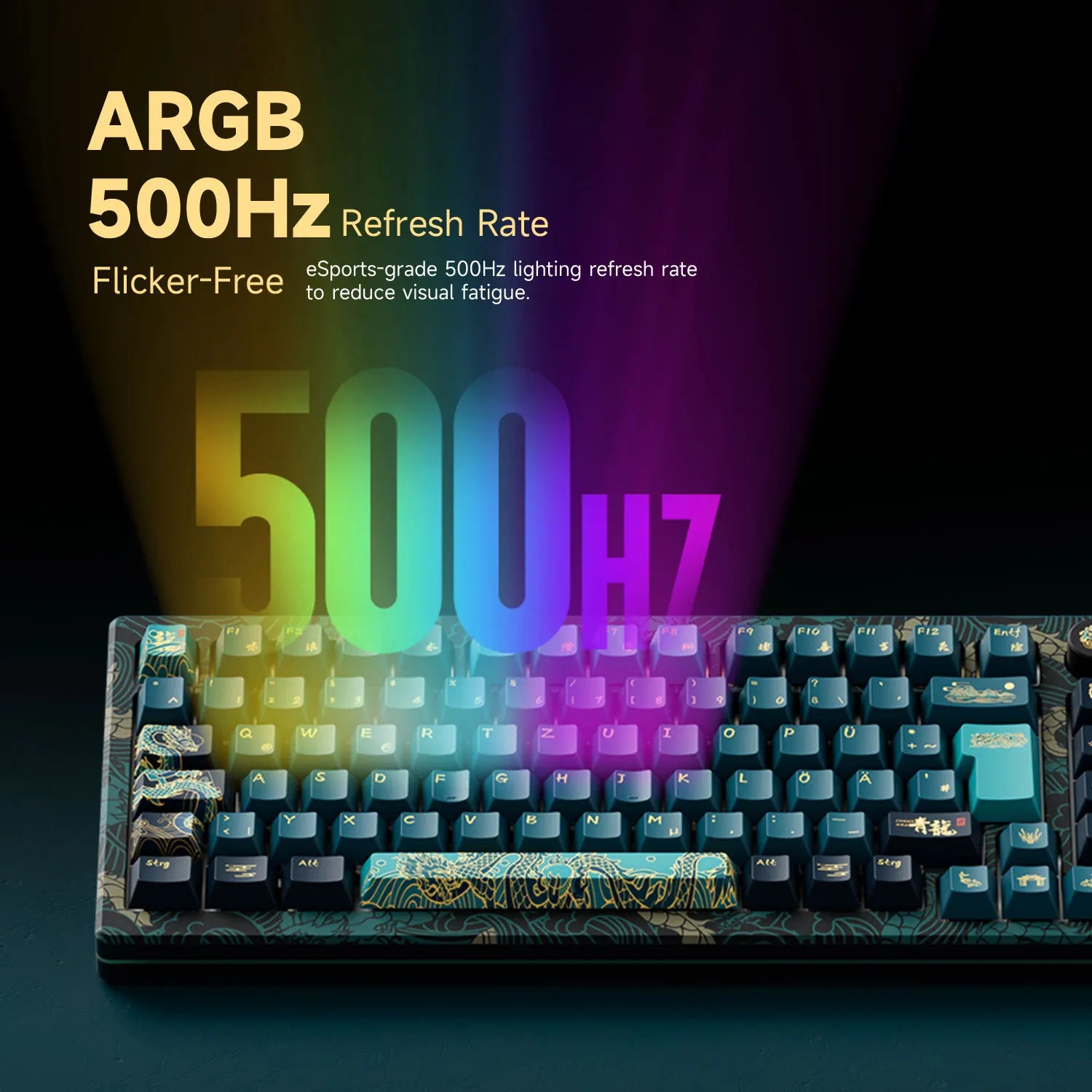

ARGB at a 500Hz Refresh Rate

MOD 007 HE Year of Dragon (V2) features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds.

RT Stabilizer

This “RT Stabilizer” mode is especially useful when set to a Rapid Trigger precision of 0.01mm, as magnetic switch keyboards may experience unintended inputs or disconnection from slight hand tremors, which can disrupt the overall gaming experience.

It can be activated via the Akko Driver with 4 different filtering levels.

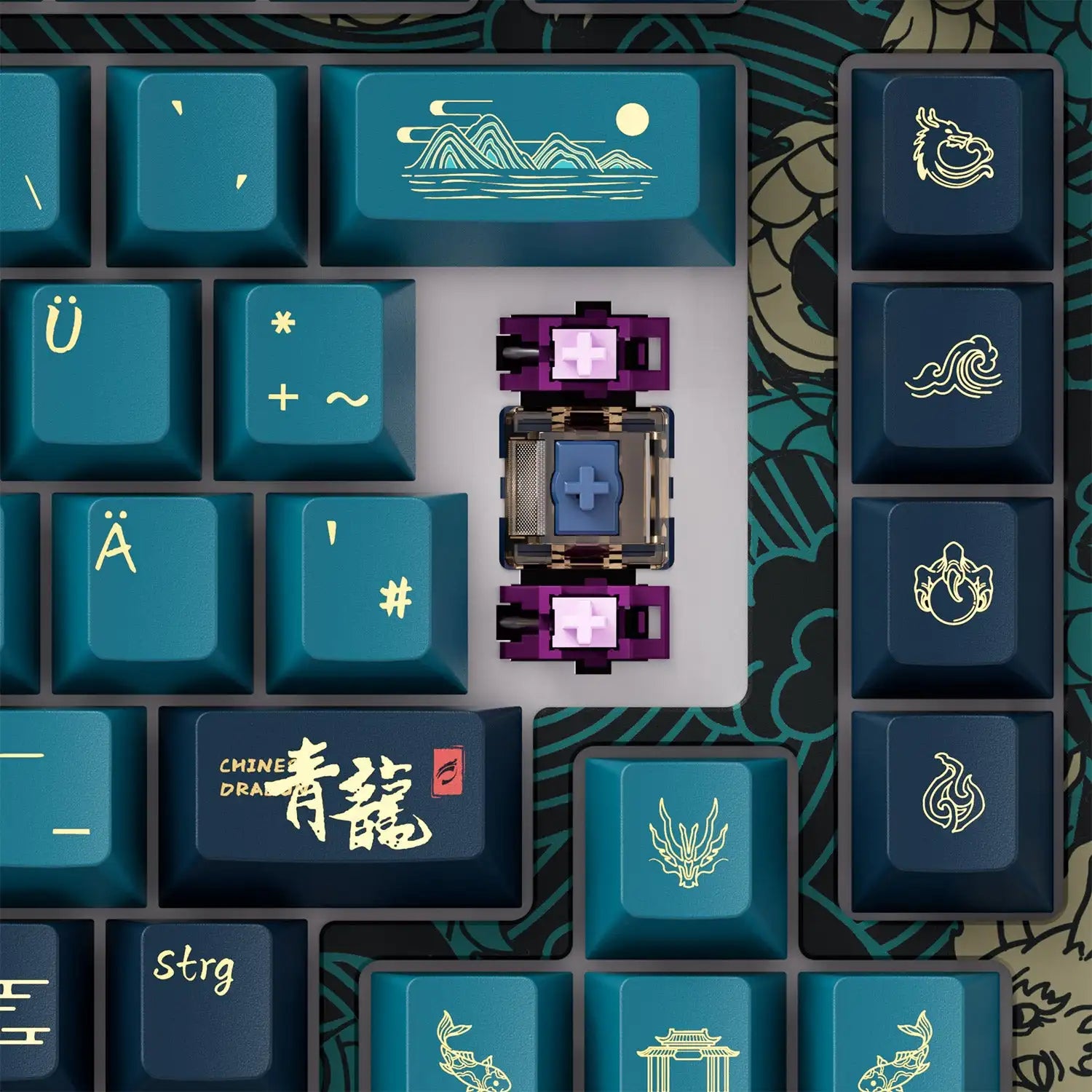

Demagnetized Stabilizer

Compared to traditional mechanical keyboard stabilizers, the Stabilizer Wire is demagnetized, reducing magnetic interference, improving trigger accuracy, optimizing feel, and enhancing long-term stability—essential for precise and consistent performance in magnetic switch keyboards.

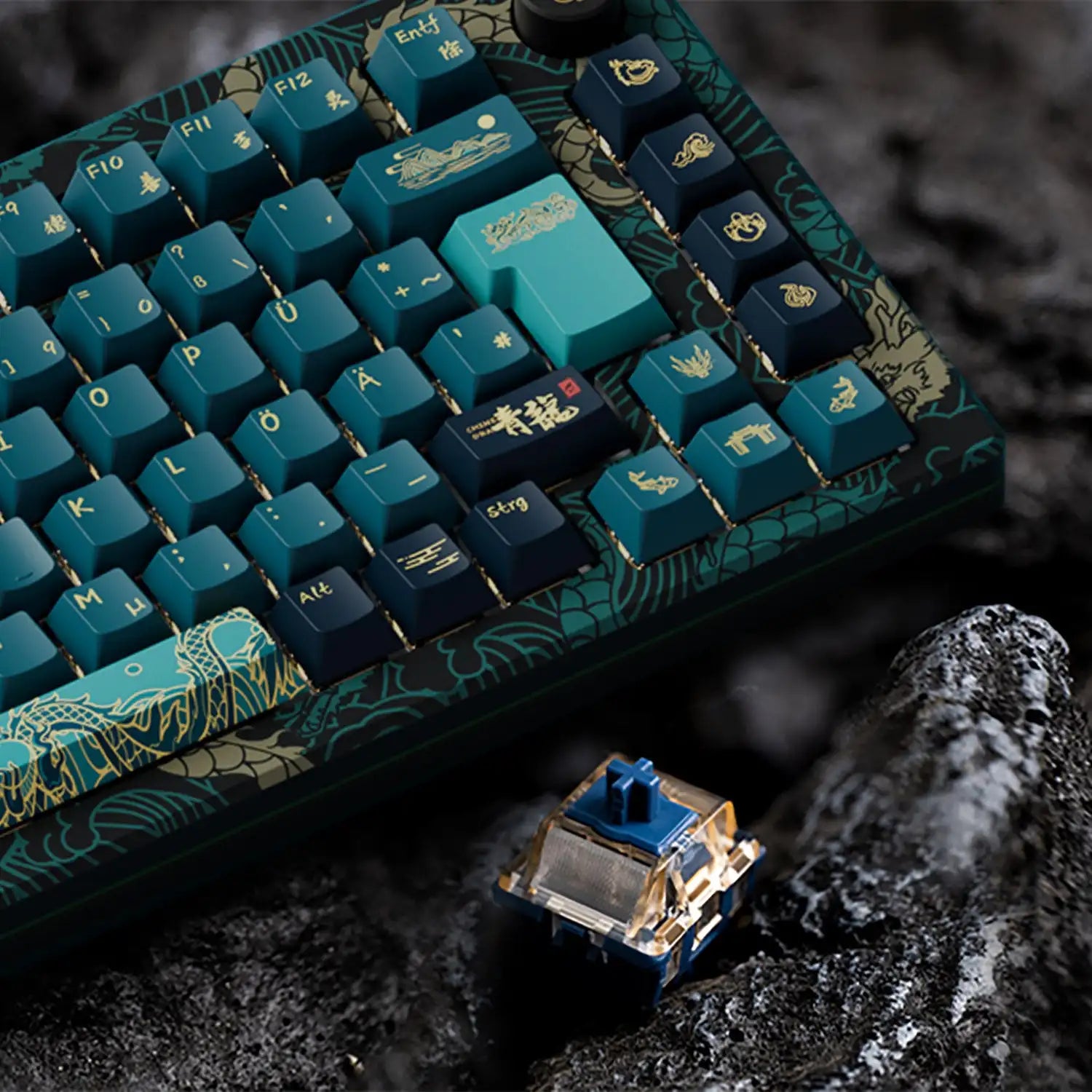

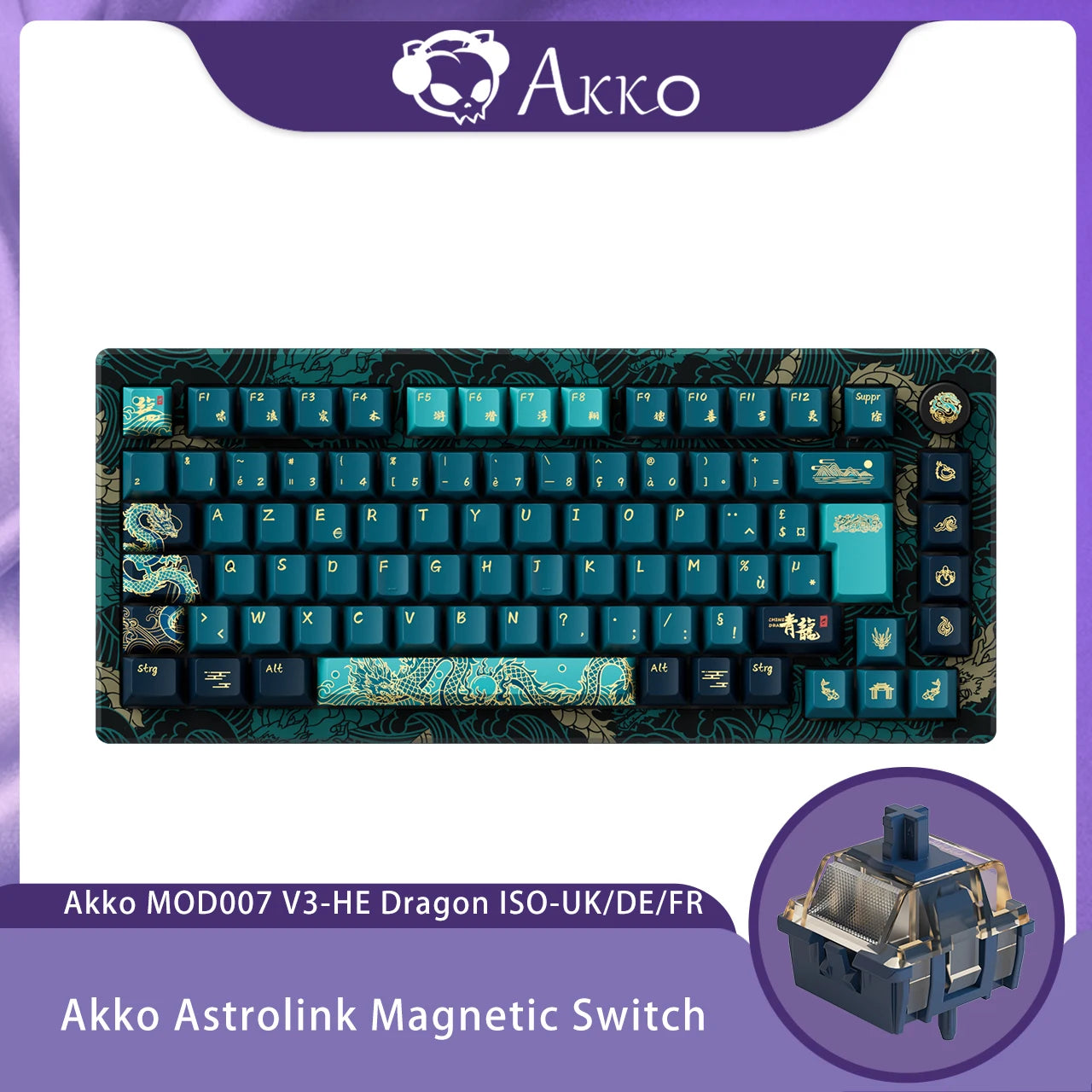

Akko Astrolink Magnetic Switch

Type: Linear

Total Travel: 3.4mm

Initial Force: 36±5gf

End Force: 46gf

Top/Stem/Bottom: POM/PC/Nylon

LED Diffuser

Ultra-accurate typing experiences adjustable in 0.01mm. Applying for the electromagnetic principle, operated by Hall effect sensing.

Akko Cream Yellow Magnetic

Type: Linear

Operating Force: 50gf ± 10gf

Total Travel: 4.0mm

Pre-Travel: 2.0 ± 0.5mm

Ultra-accurate typing experiences adjustable in 0.1mm.

Applying for the electromagnetic principle, operated by Hall effect sensing.

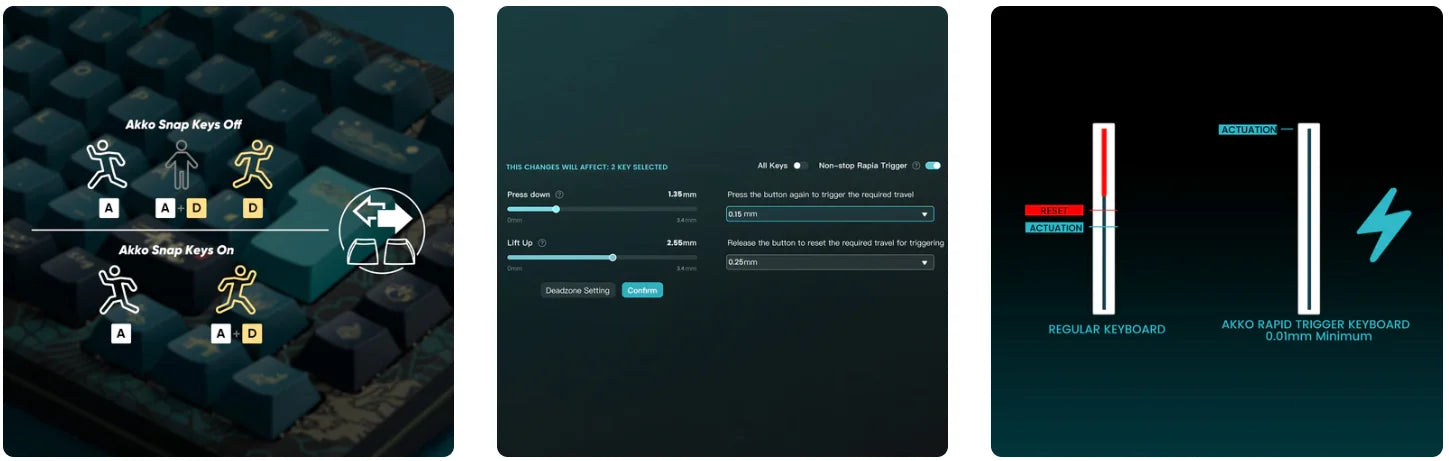

Snap Key

Snap Key is MonsGeek’s implementation of SOCD, which prioritizes the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid and responsive control, especially in FPS games, where quick reactions and precise movements are crucial.

Adjustable Actuation Distance

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

Rapid Trigger (RT)

Rapid Trigger dynamically changes the keys’ actuation and deactivation points. Through the MonsGeek Driver, users can choose “All Buttons” or “Per Button” customization modes, as well as activate “Non-stop Rapid Trigger” for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.

For example, when gamers enable RT, they can achieve “Counter-Strafe“ in VALORANT games.

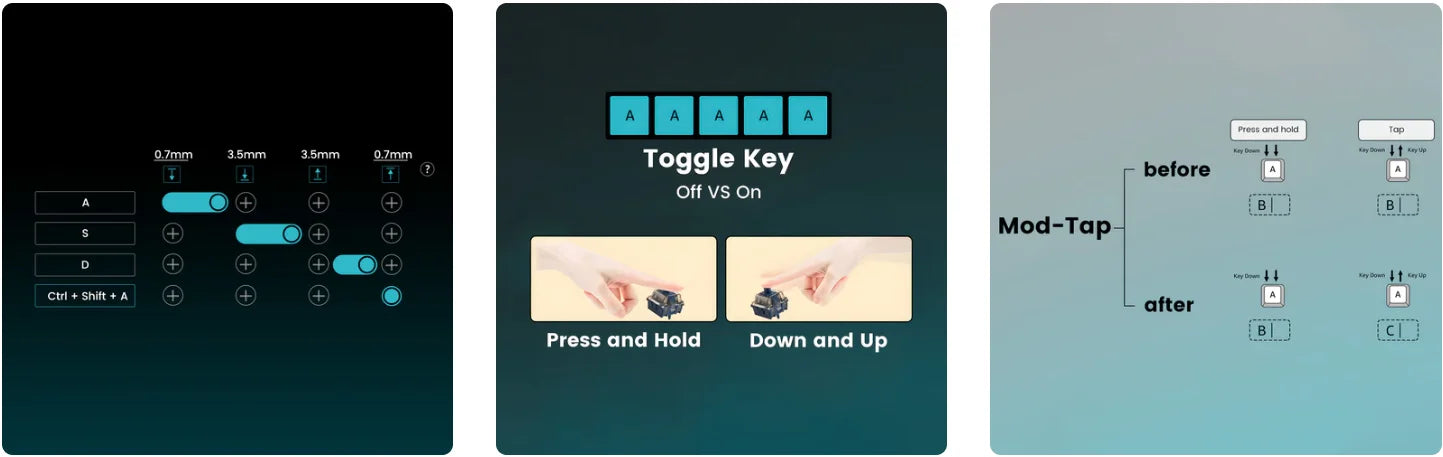

Dynamic Keystrokes (DKS)

Pressing a key can trigger four different key operations.

Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.

Toggle Key (TGL)

TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency.focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

Mod-Tap

Mod-Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.

A single keypress can achieve two functions: holding down the key for one function, and press the key for another.

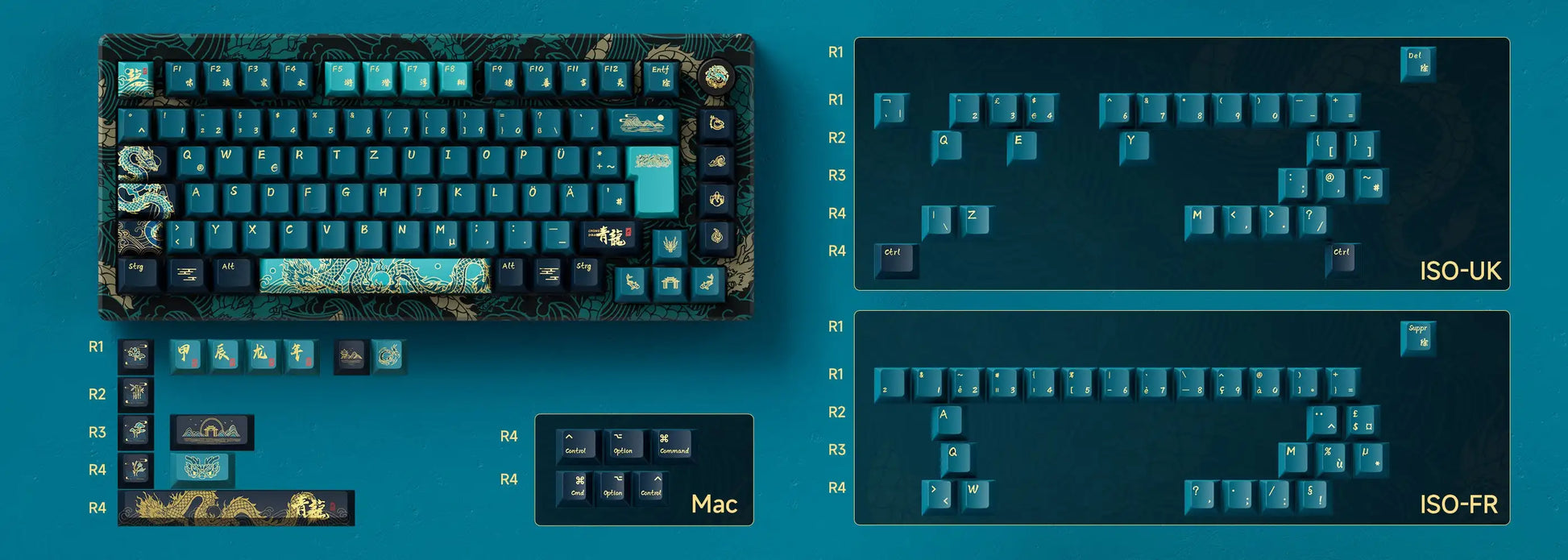

ISO-DE/FR/UK Extra Keycaps

Mac | ISO-UK | ISO-FR | Basic

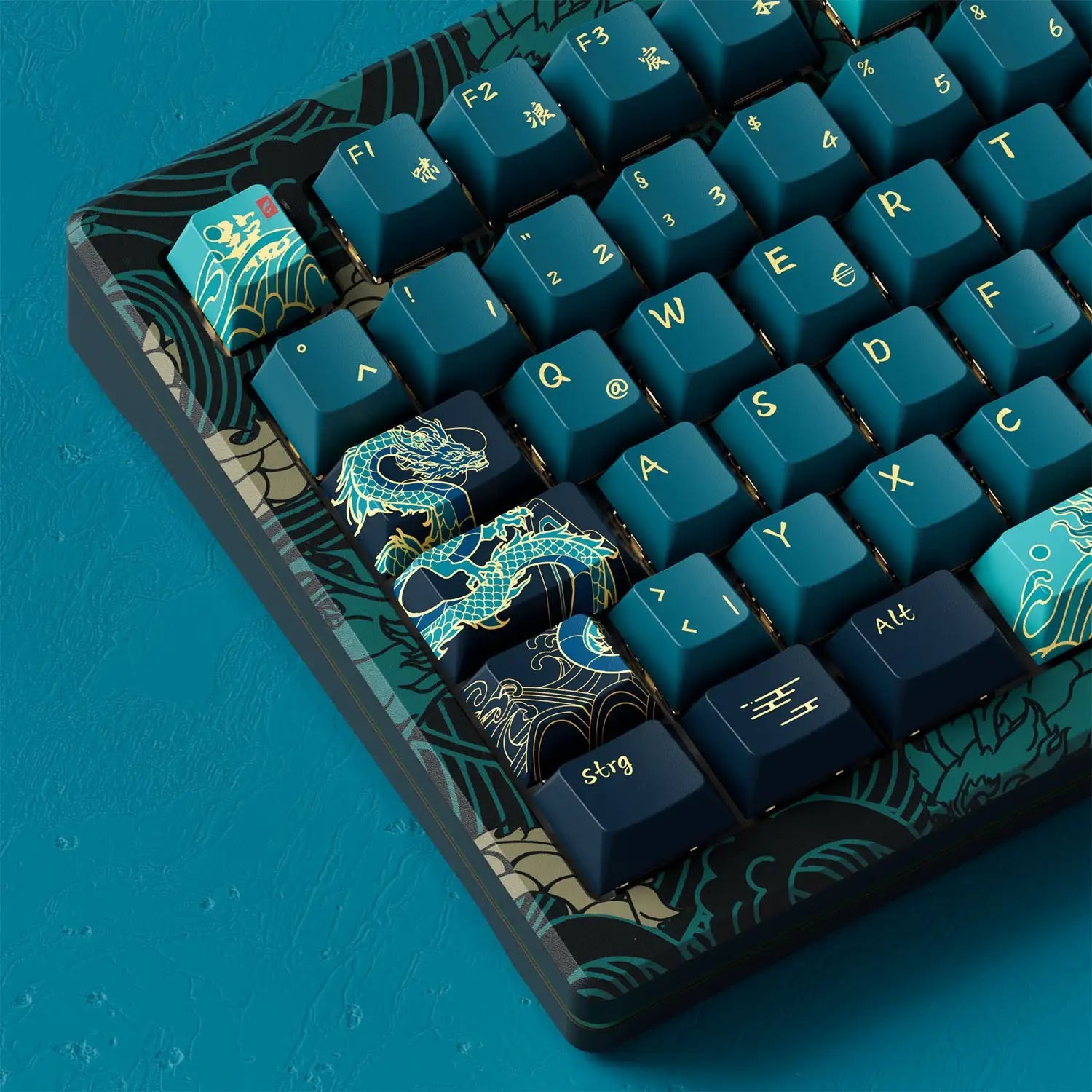

Cherry Profile Dye-sub PBT Keycaps

Utilize a cyan color scheme featuring elements inspired by the 'Year of Dragon'. The PBT keycaps boast exceptional oil resistance, enhancing the overall typing experience while ensuring the longevity of the legends' visibility.

Note:ISO-DE/FR/UK layout comes with ISO-DE pre-build keyboard, basci, Mac, ISO-FR and ISO-UK extra keycaps. You can easily change the keys.

US-ANSI layout comes with US-ANSI pre-build keyboard and basic extra keycaps.

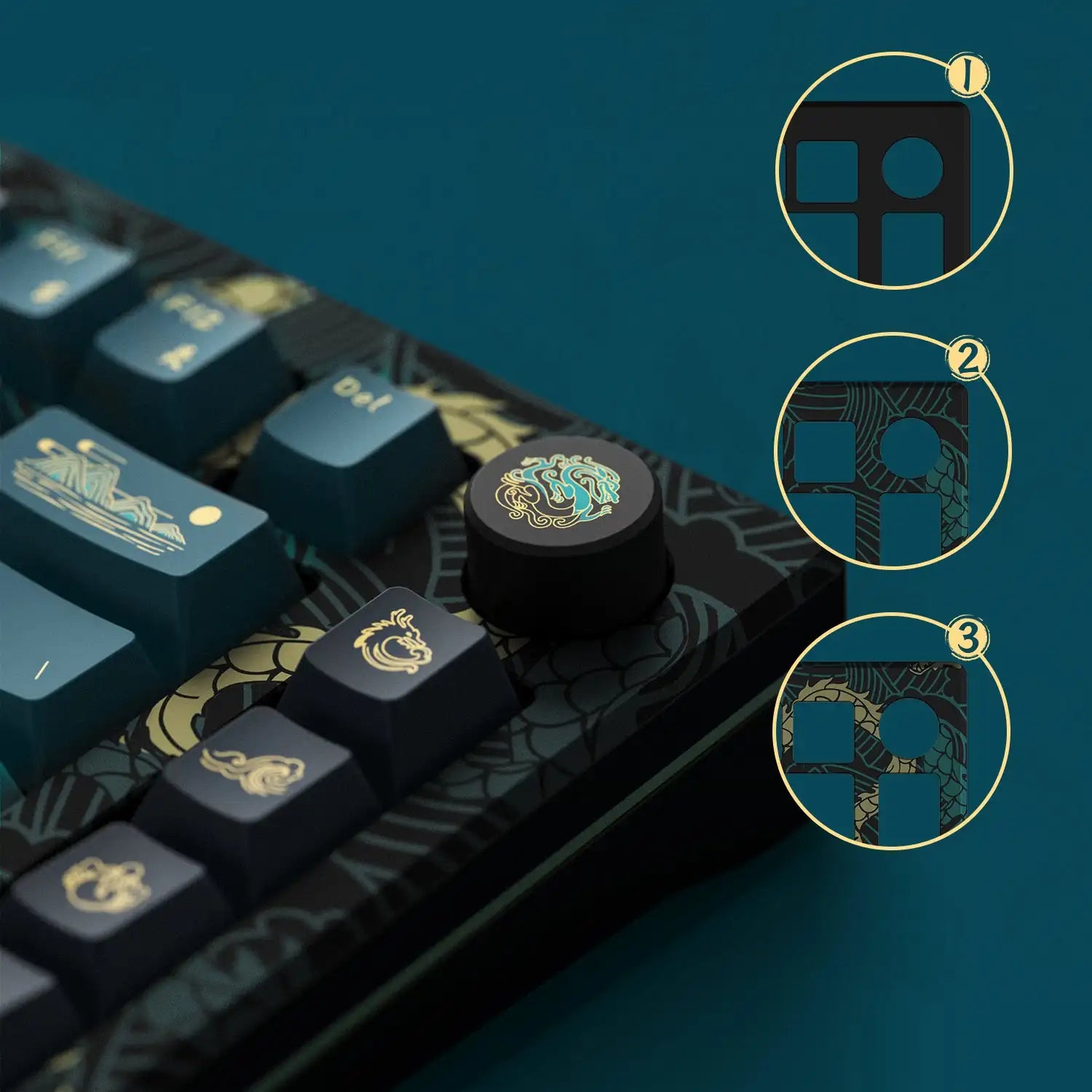

Three Tone Anodization

The case undergoes an extremely intricate three tone anodization process. Enable the keyboard to have enhanced tactile sensation, be more durable, and scratch-resistant.

Detachable USB

Easy for wired connection, storage and portability. The coiled cable included in the box will keep your desktop tidy.

Programable Knob

Featuring with a limited year of the dragon themed knob, you can easily control the volume and lighting and program to other funtions.

PVD Weight(V2)

Akko new PVD weight, a beautifully designed featuring Chinese characters that means 'Year of the Dragon Limit Edition'.

Note: Due to different angles and lighting, it may be darker.

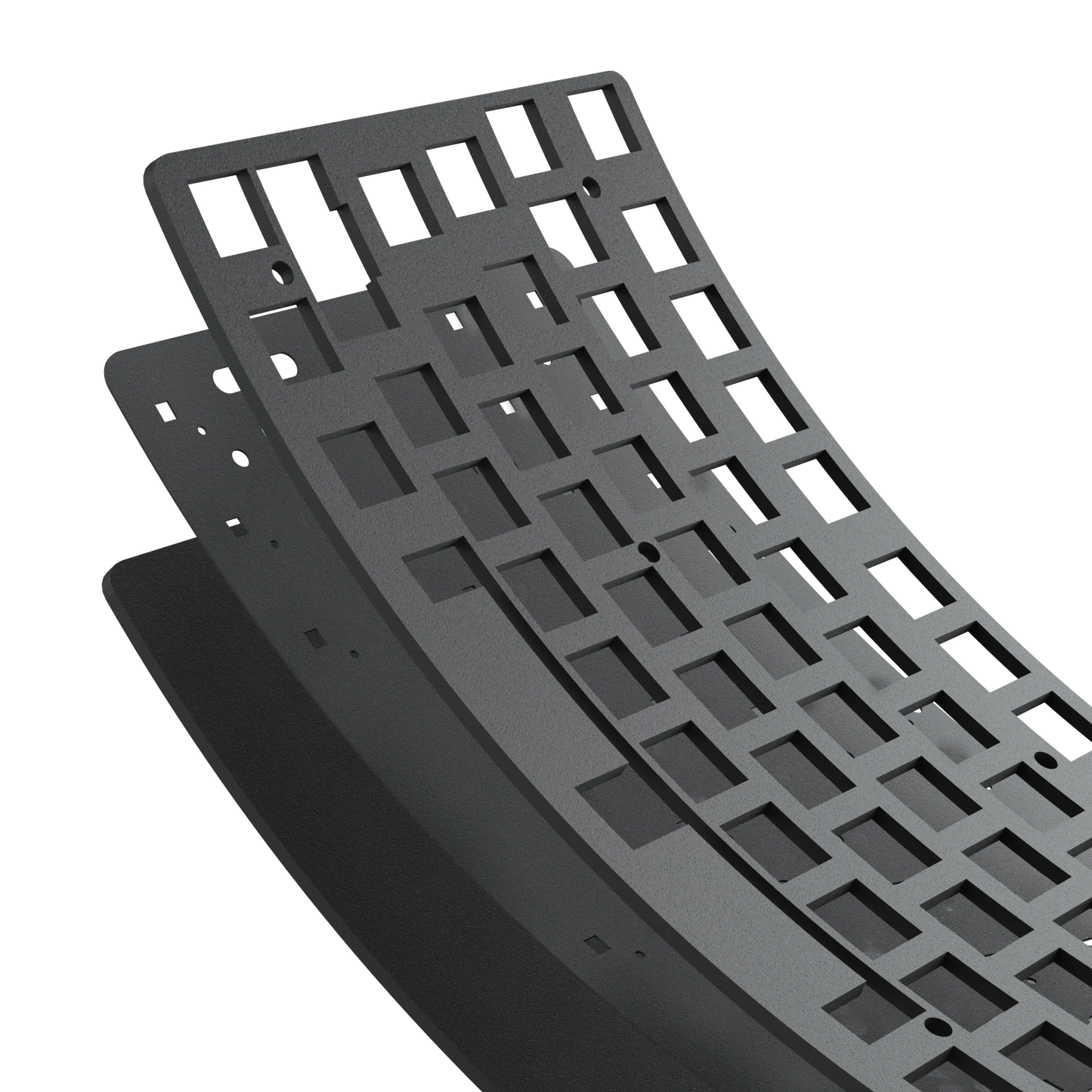

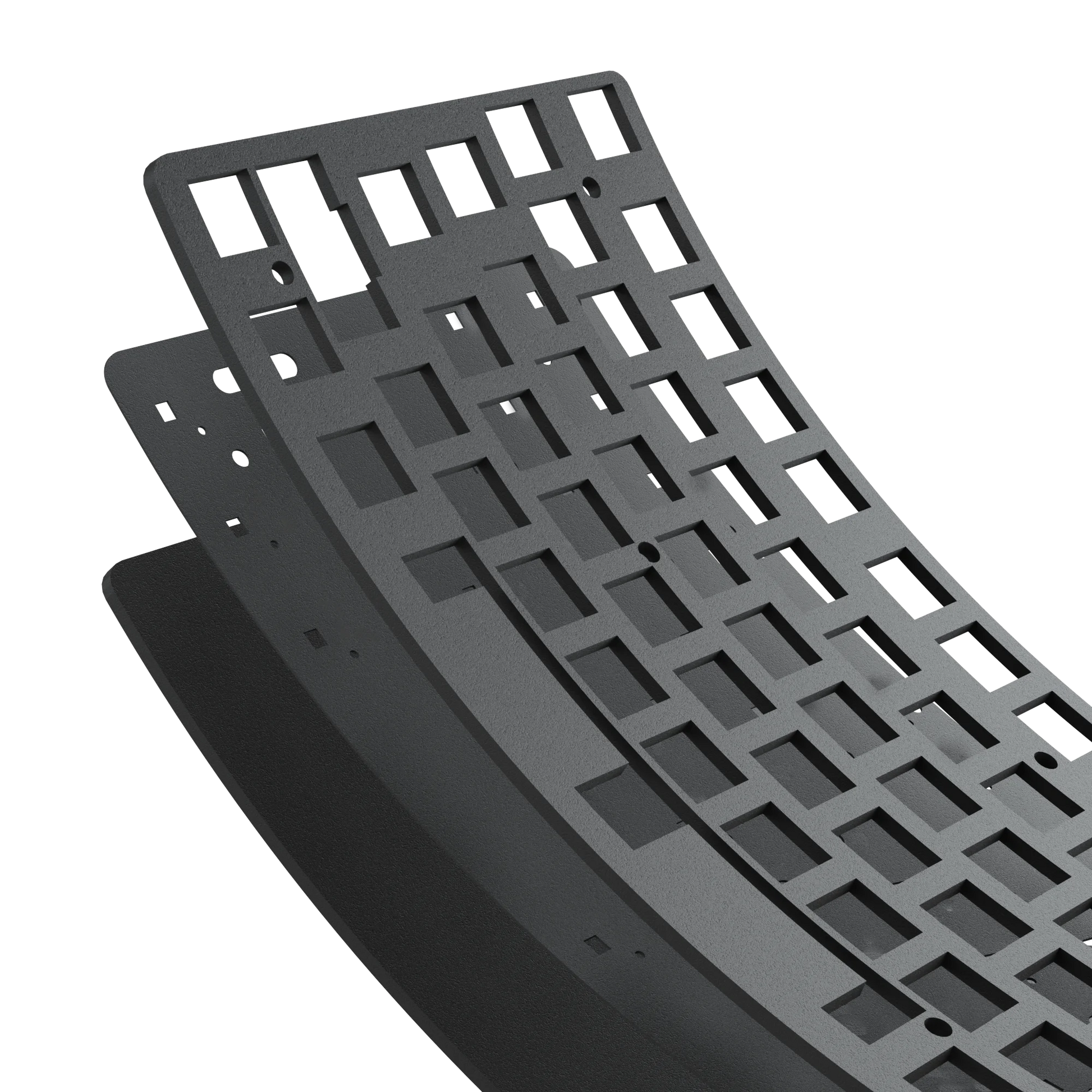

PORON Plate Foam

MOD 007 HE Year of Dragon is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

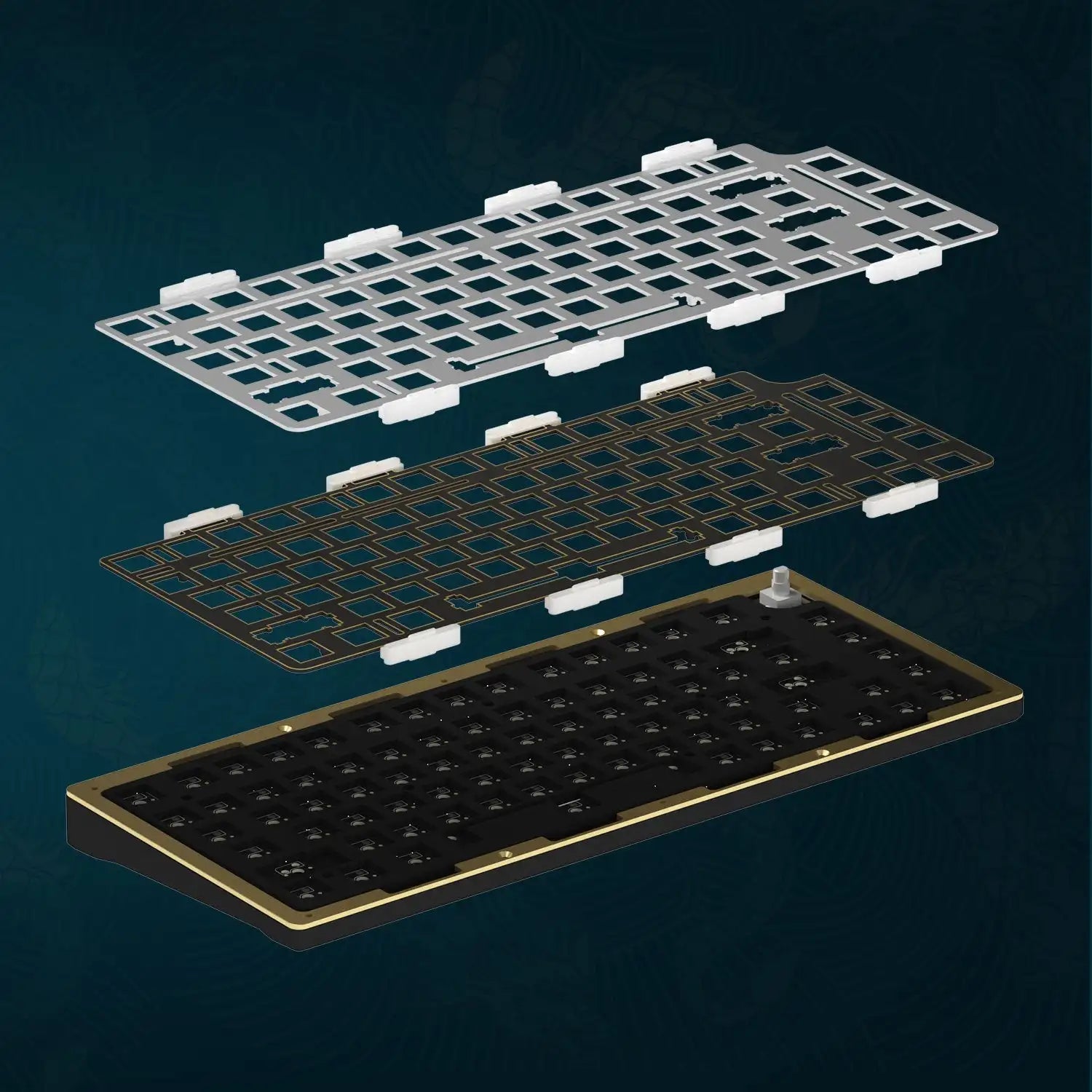

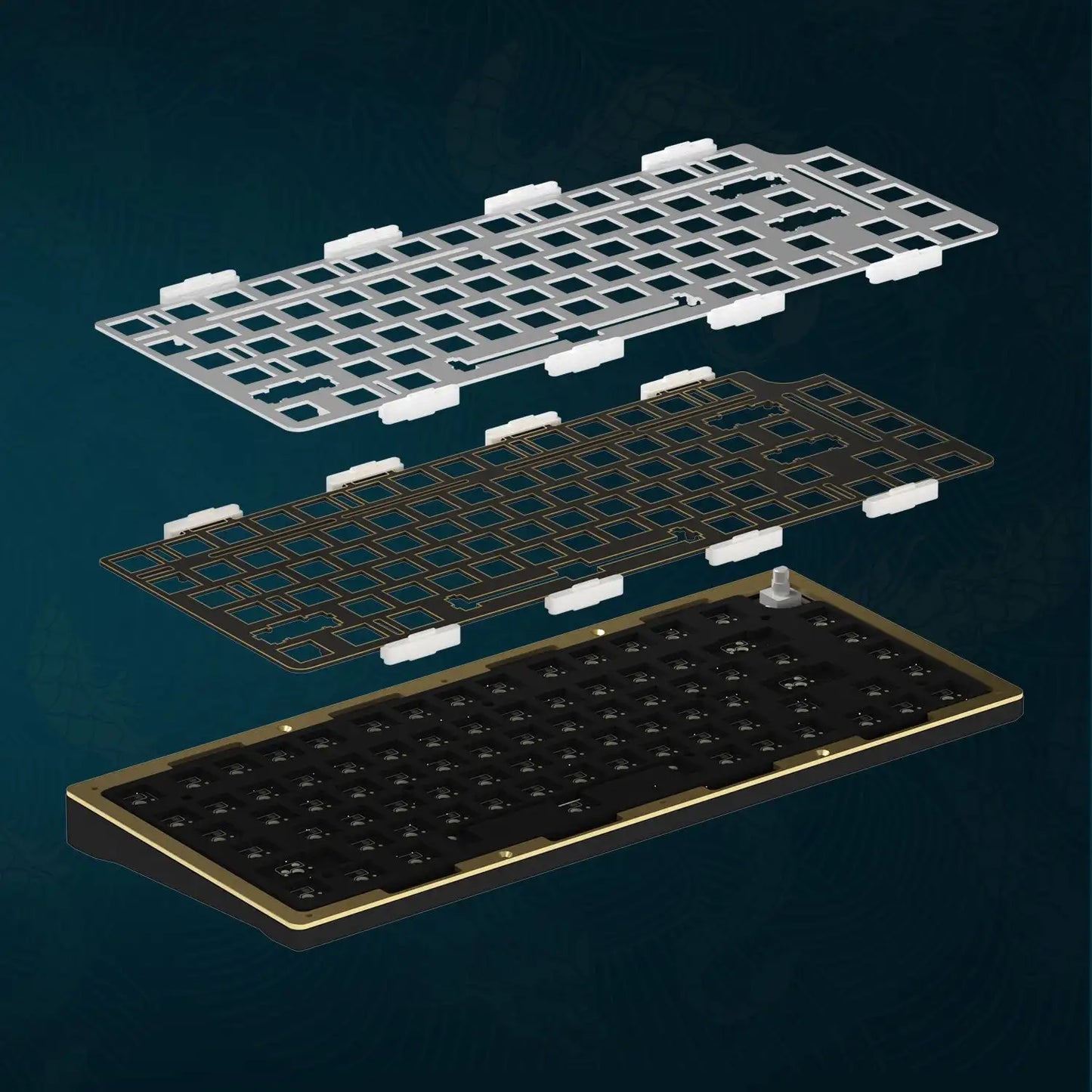

Aluminum & FR4 Plate

MOD 007 HE Year of Dragon utilizes an pre-builded Aluminum plate and a FR4 plate (V2 Astrolink Switch) for a stiffer and higher-pitched sound profile.

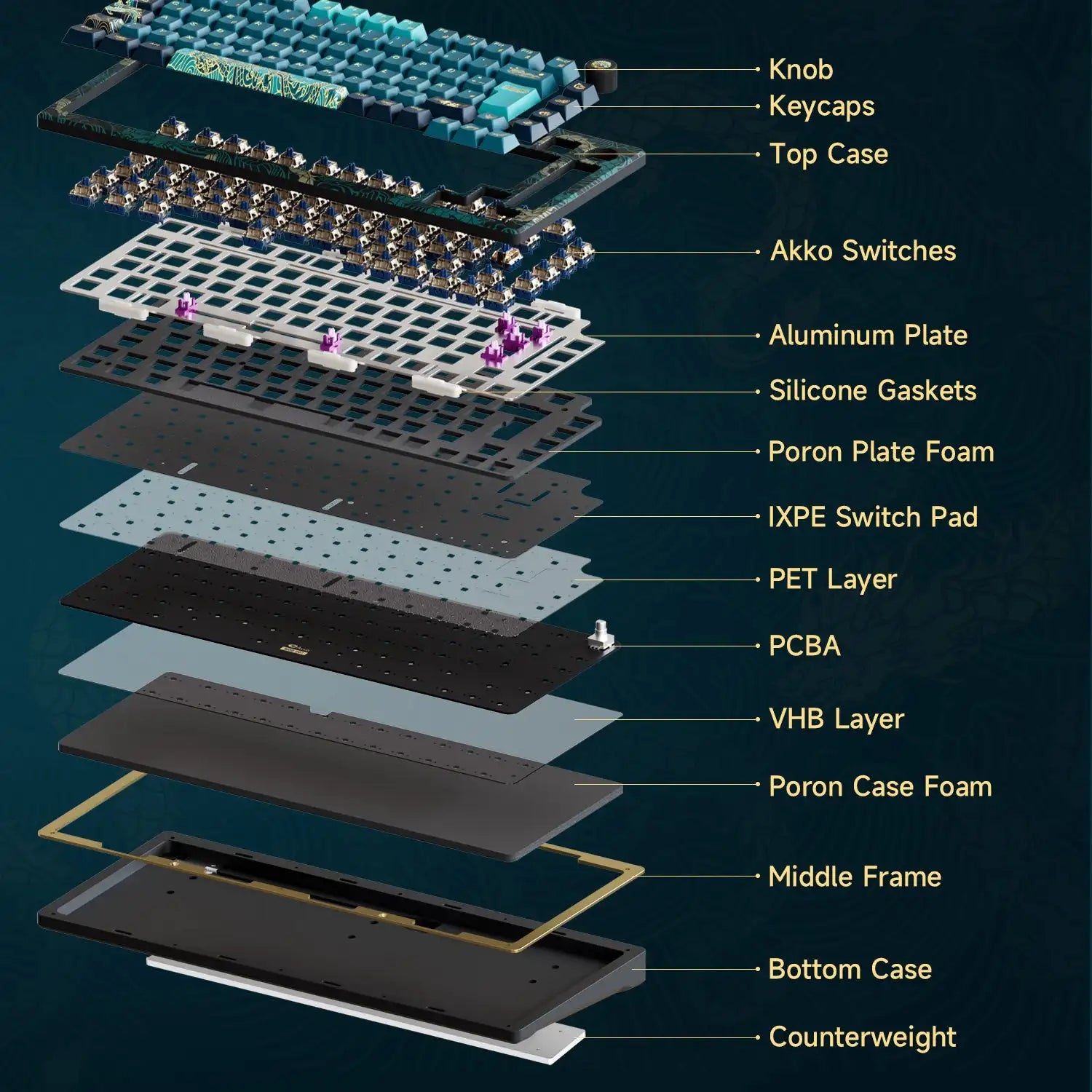

Gasket Mount & Upgrate Layer

A gasket mount keyboard is a type of mechanical keyboard that uses a gasket material, such as silicone or neoprene, to create a “floating” mount for the switches. The gasket is placed between the plate and the PCB, which allows for a more flexible and cushioned typing experience.

This design allows for more flex and cushioning, which can result in a softer typing experience.
