SPECIFICATIONS

APP: XMEye

Applicable Scenarios: Indoor and Outdoor

Brand Name: WGWK

Built-in Memory Size: Non

Certification: CE,FCC,RoHS

Compression Format: H.265+, H.264, H.265

Connection Method: Network Monitoring - Wired

Feature 1: Face Detection

Feature 2: Human Detection

High Definition Support: 1080P (Full-HD)

Hign-concerned Chemical: None

Memory Card Type: None

Model Number: HD Digital Camera

Origin: Mainland China

Package: Yes

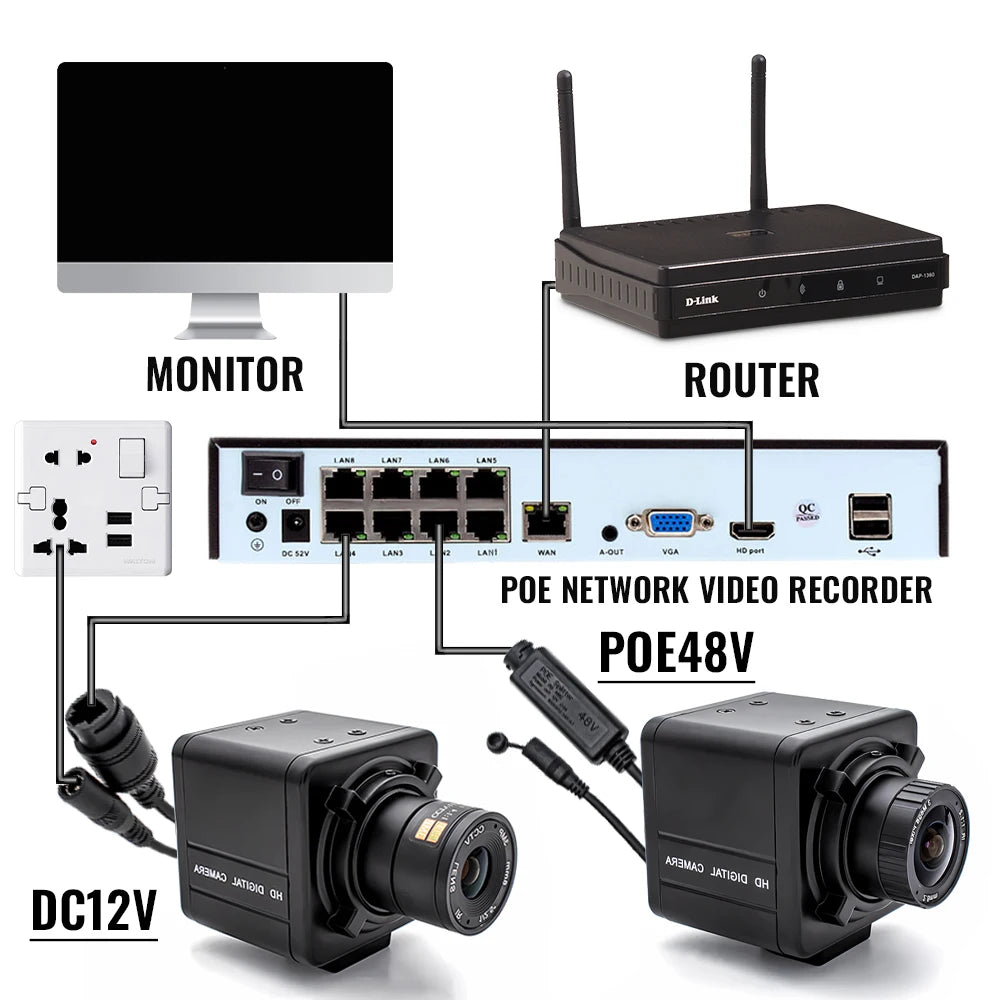

Power: Support POE Power Supply

Sensor Technology: CMOS

Support: SDK

Type: Mini

【New Product Launch】IP Network Camera, click the image for direct access to the purchase channel ▶

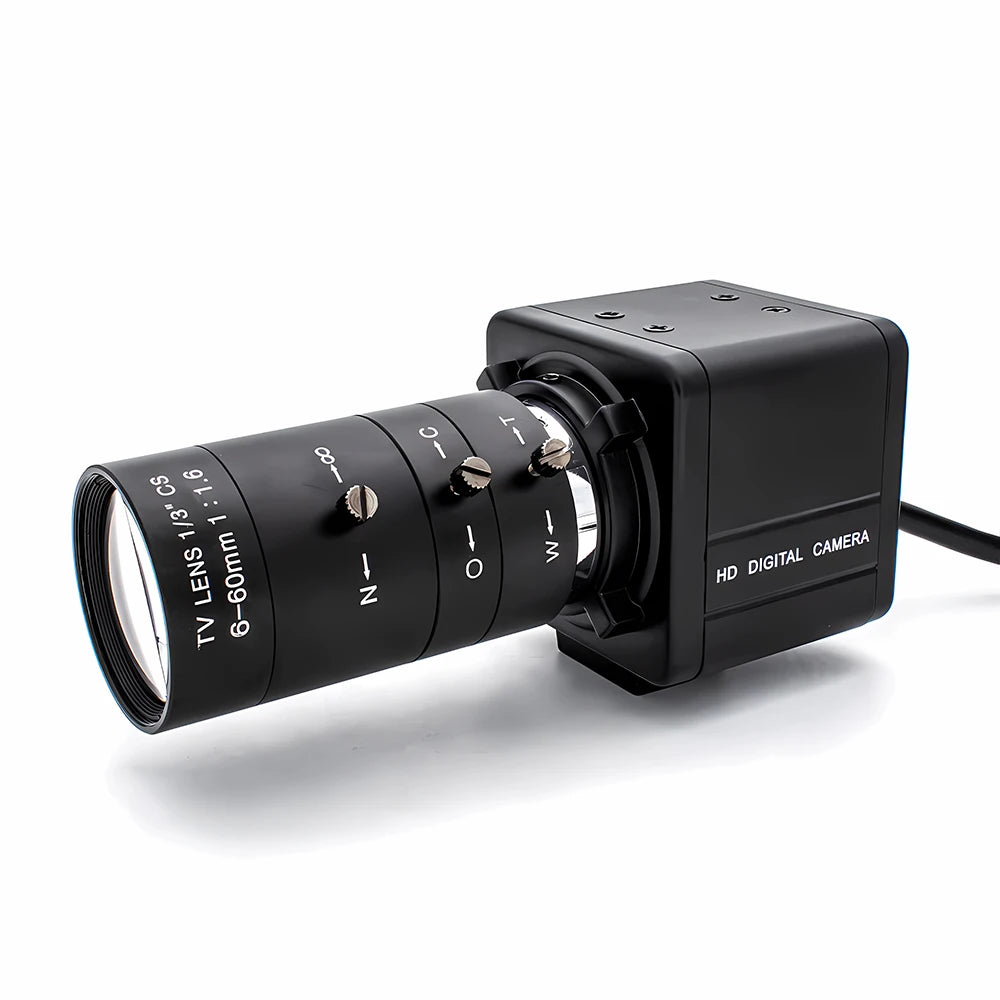

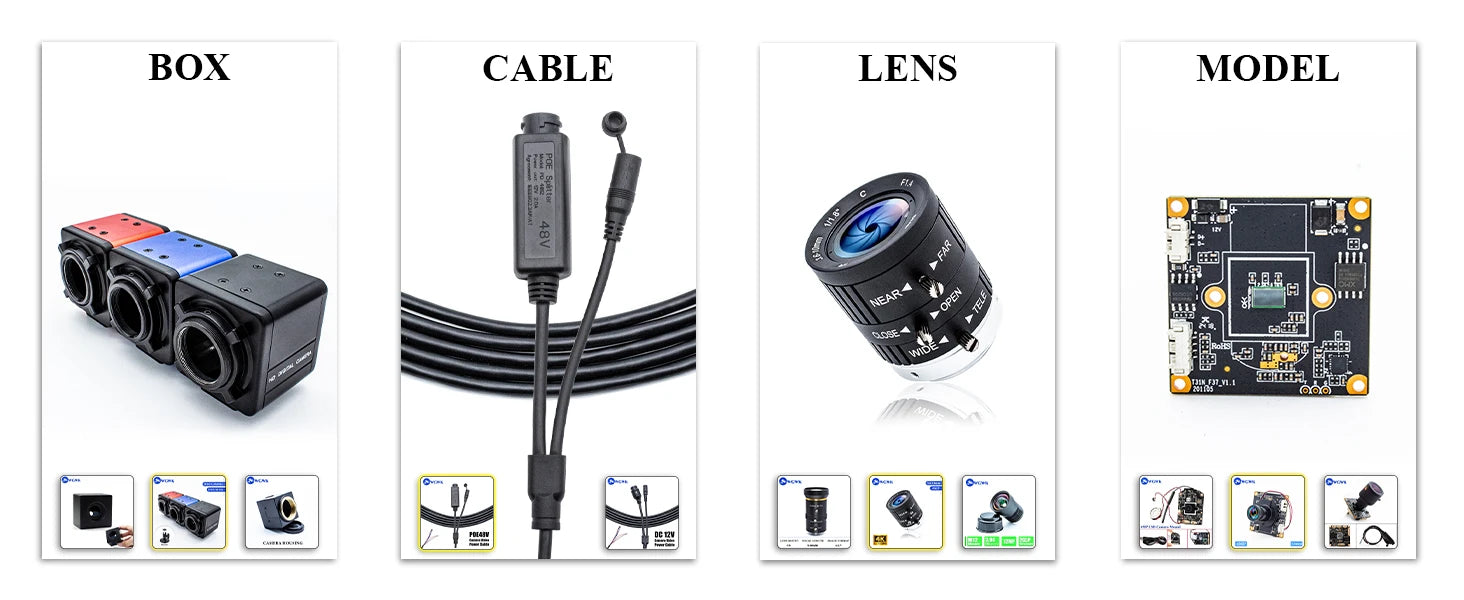

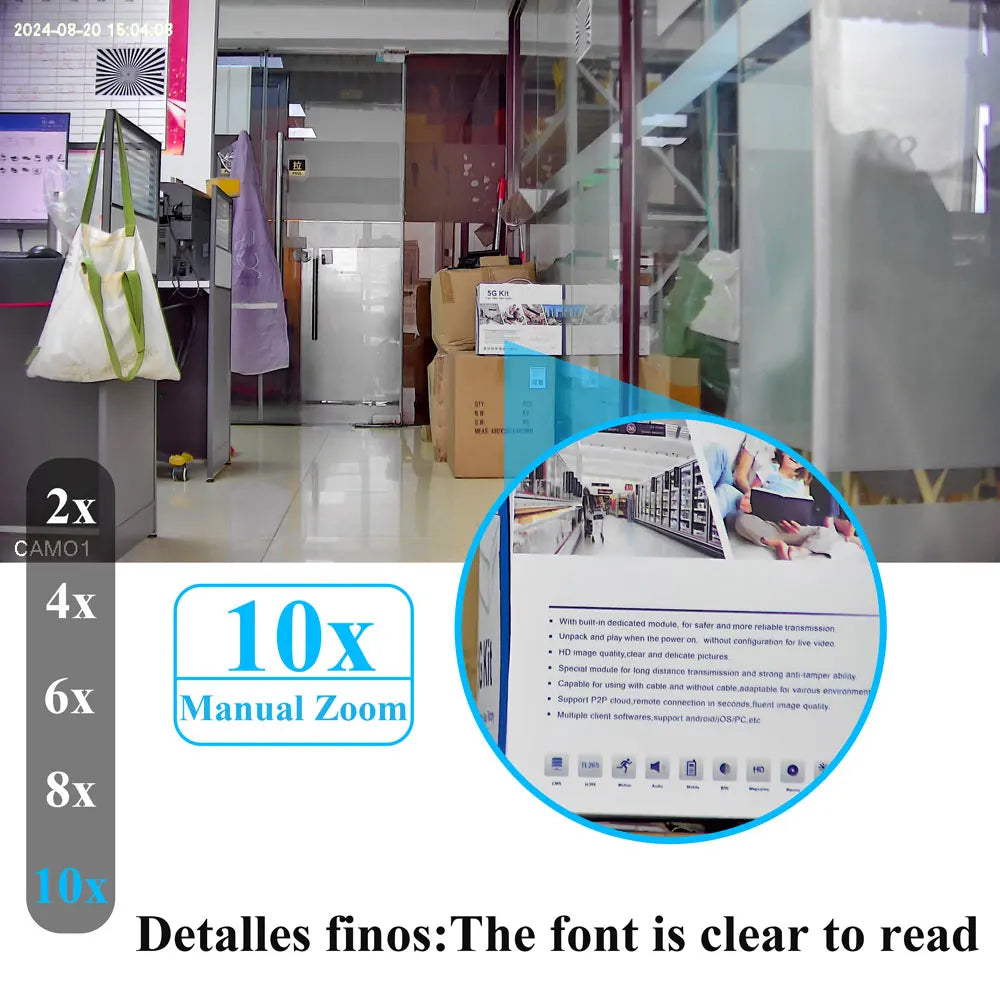

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.Note: The 10x zoom defaults to 6-60mm CS Mount lens

You can contact customer service to select the Lens you want, such as CS Mount Lens, M12 Mount Lens

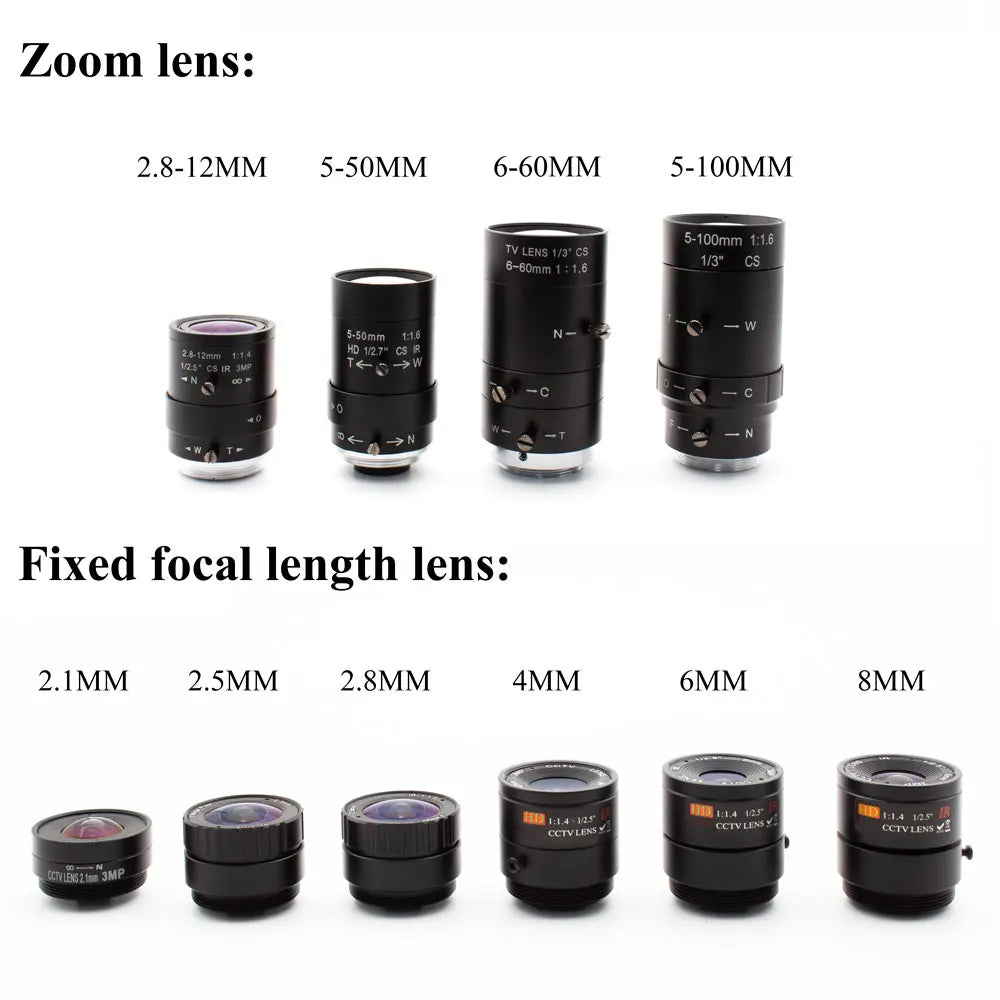

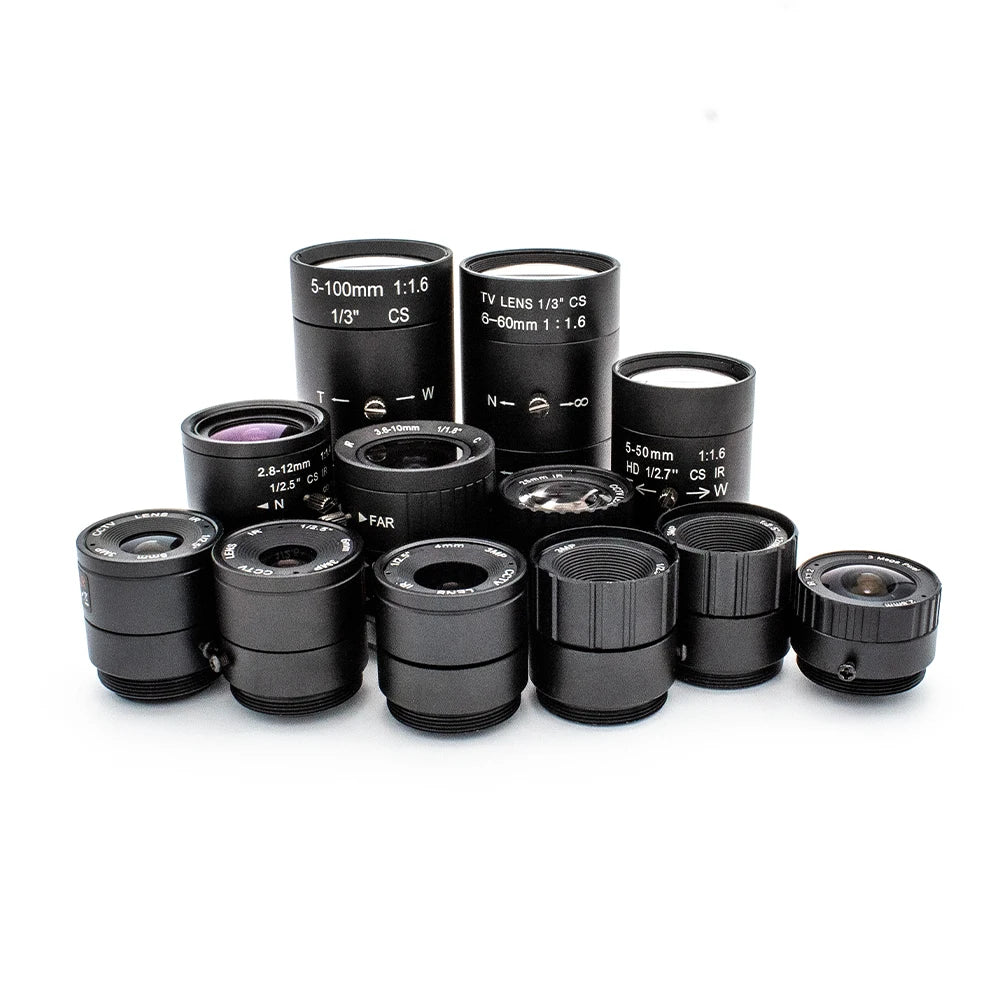

CS Lens option: 2.8mm,4mm,6mm,8mm,12mm,16mm,25mm,2.8-12mm,3.6-10mm,5-50mm,6-60mm,5-100mm

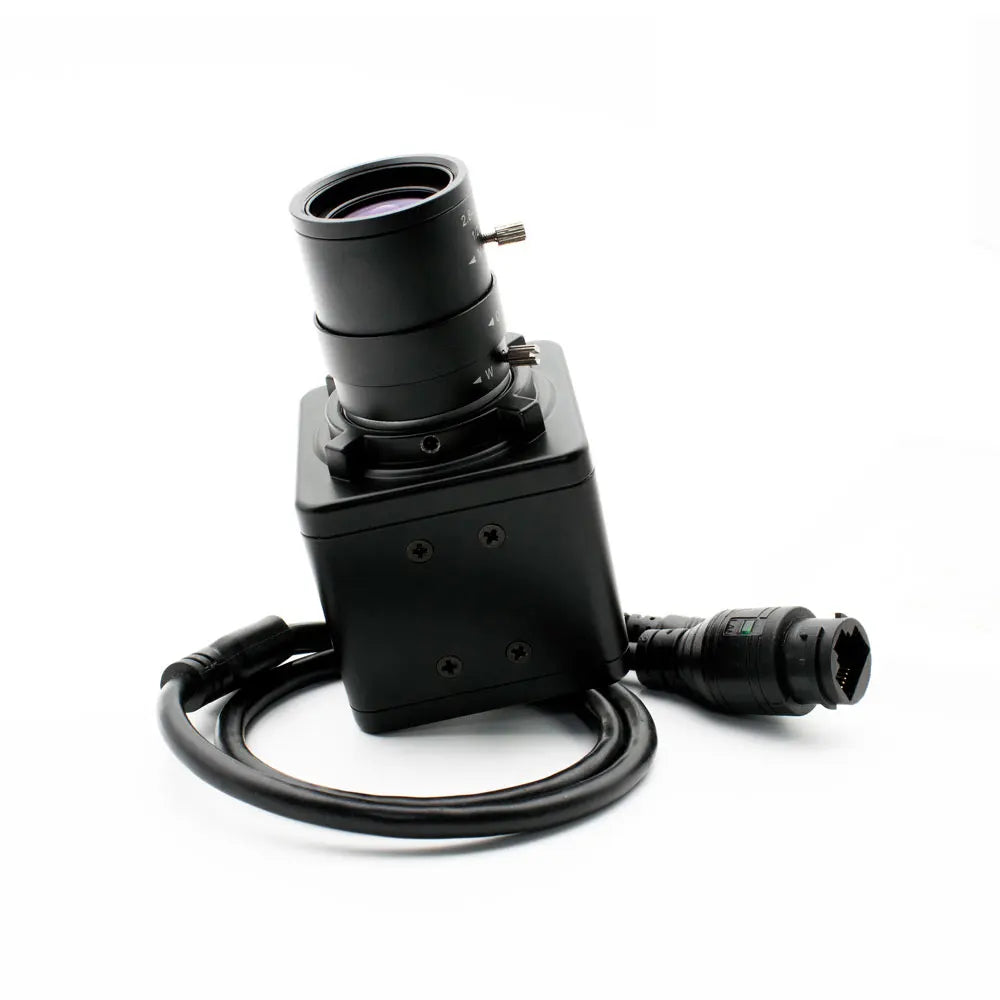

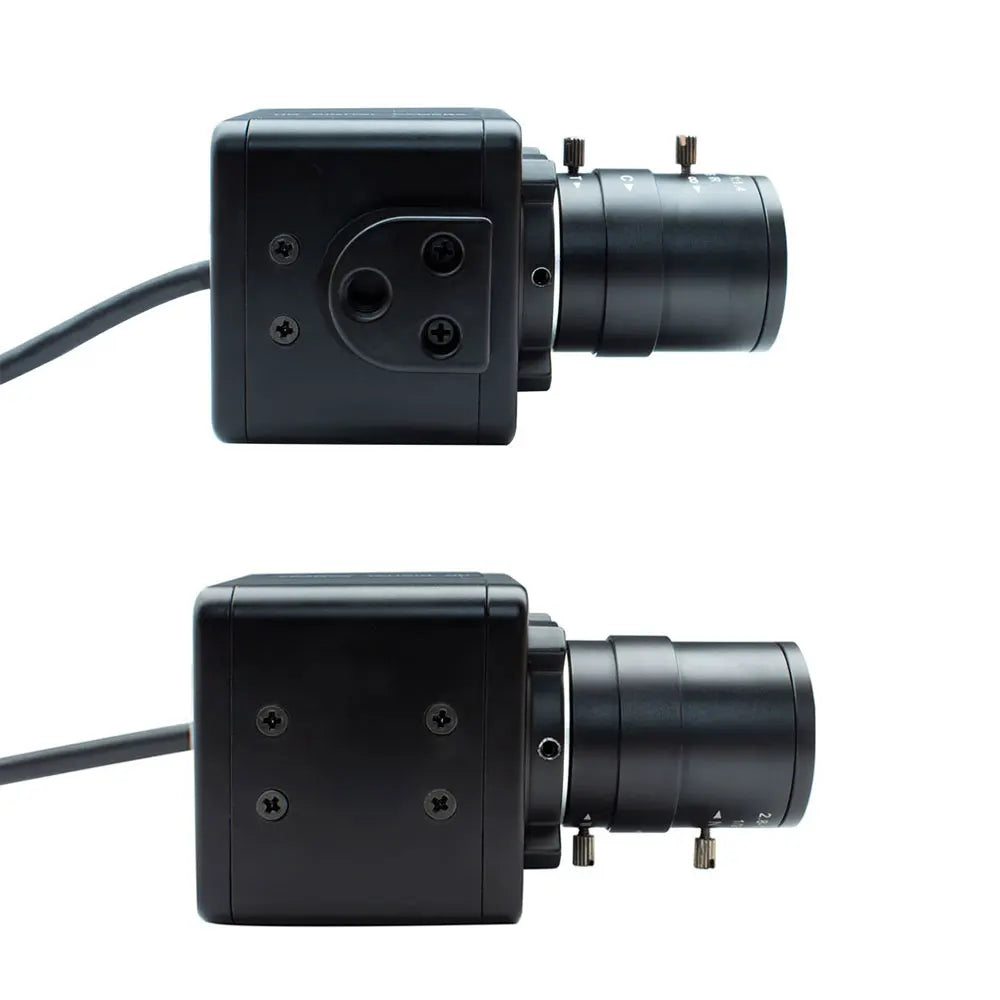

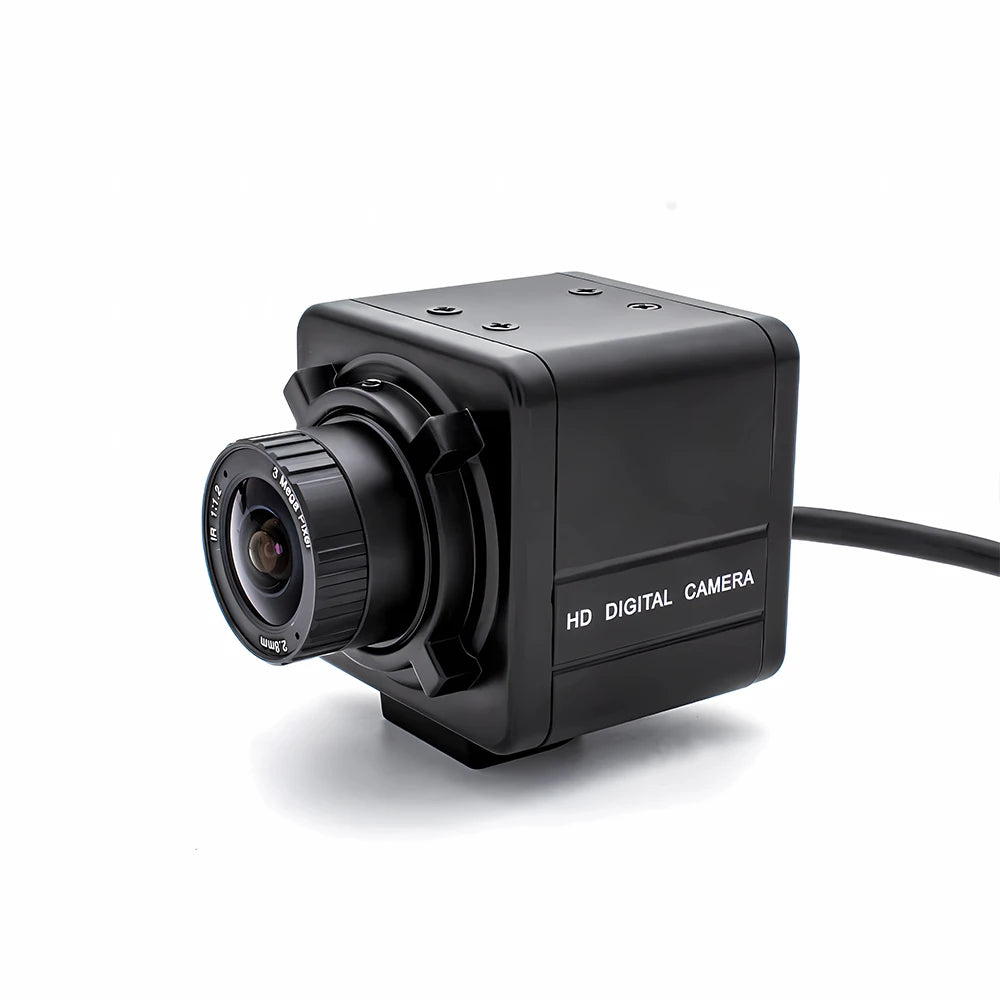

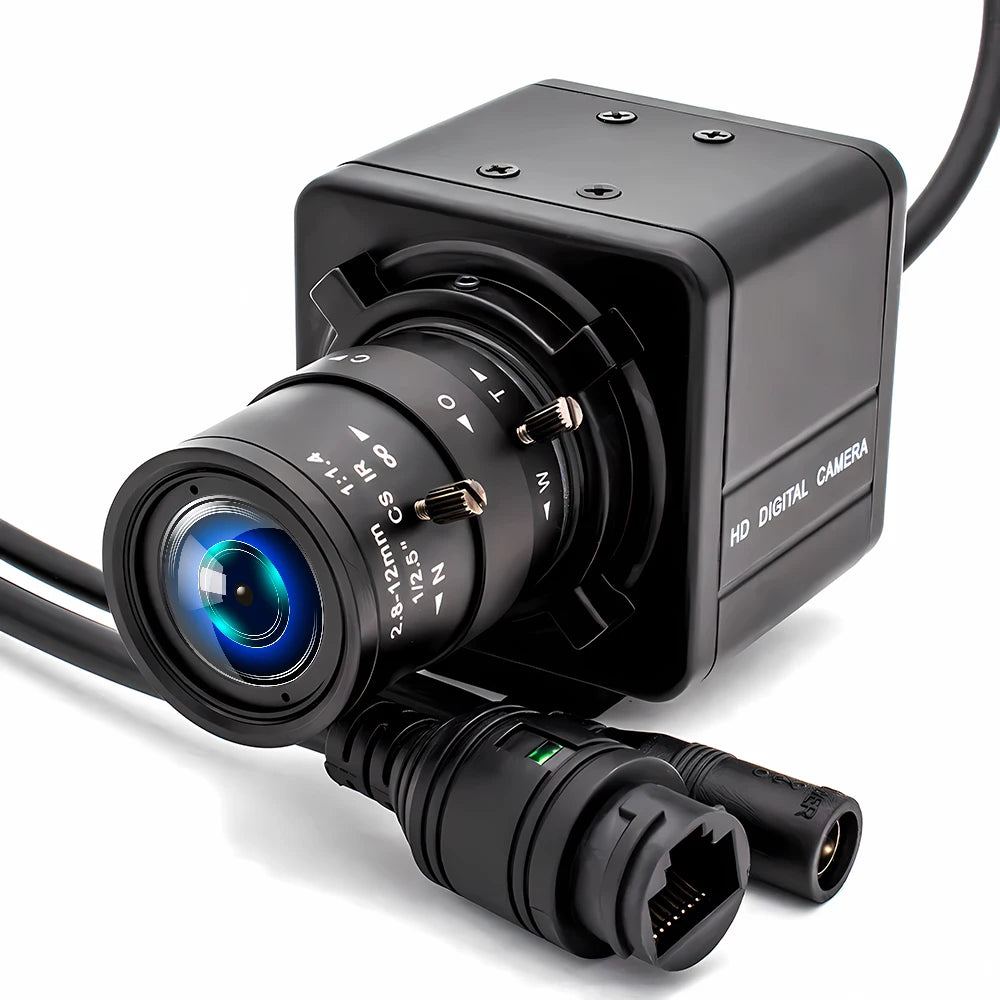

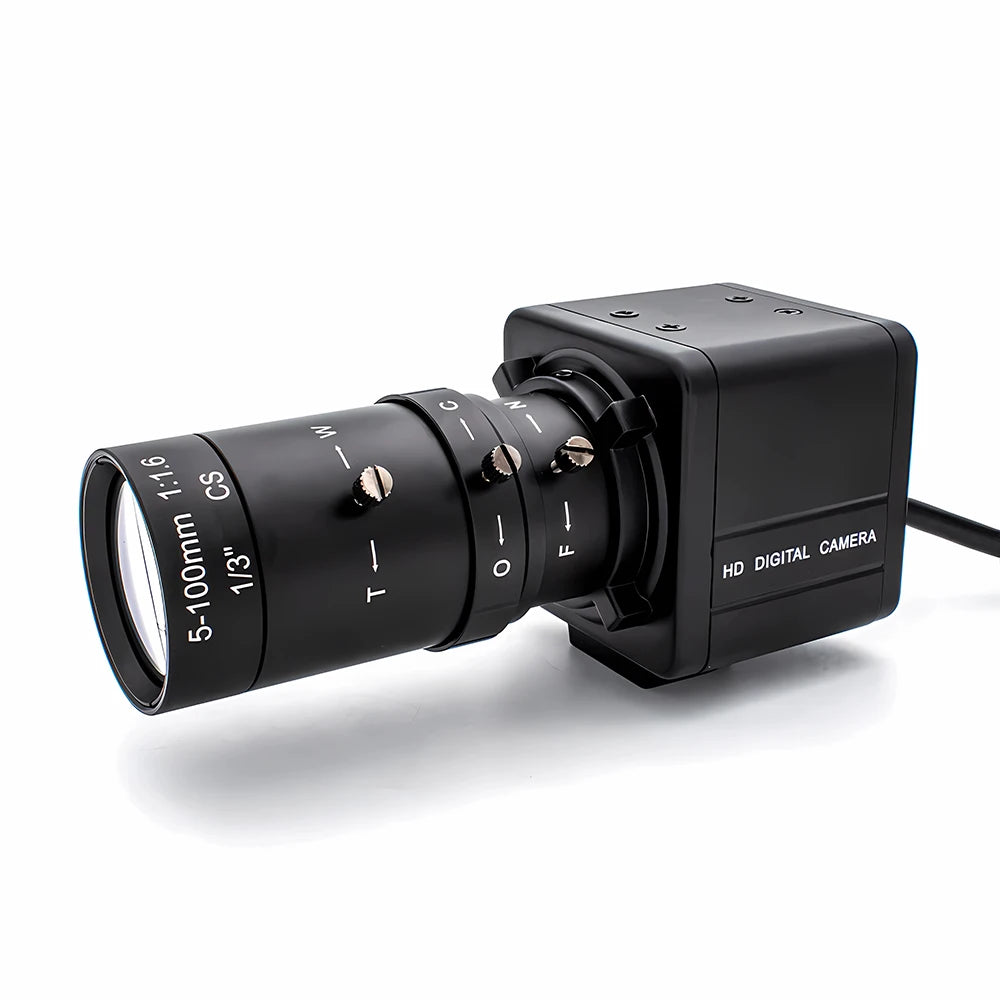

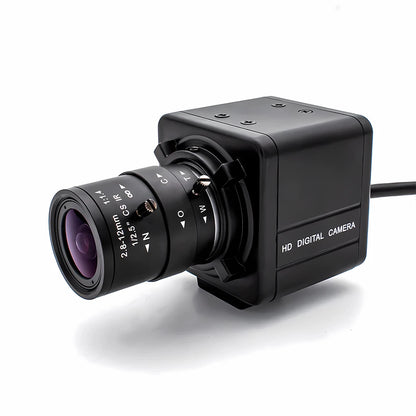

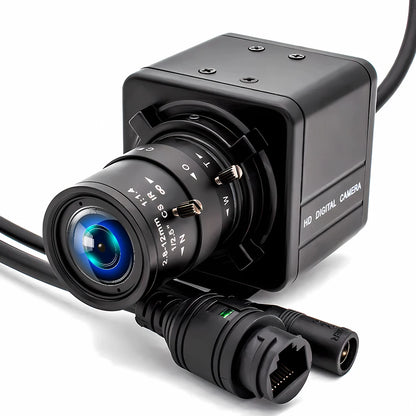

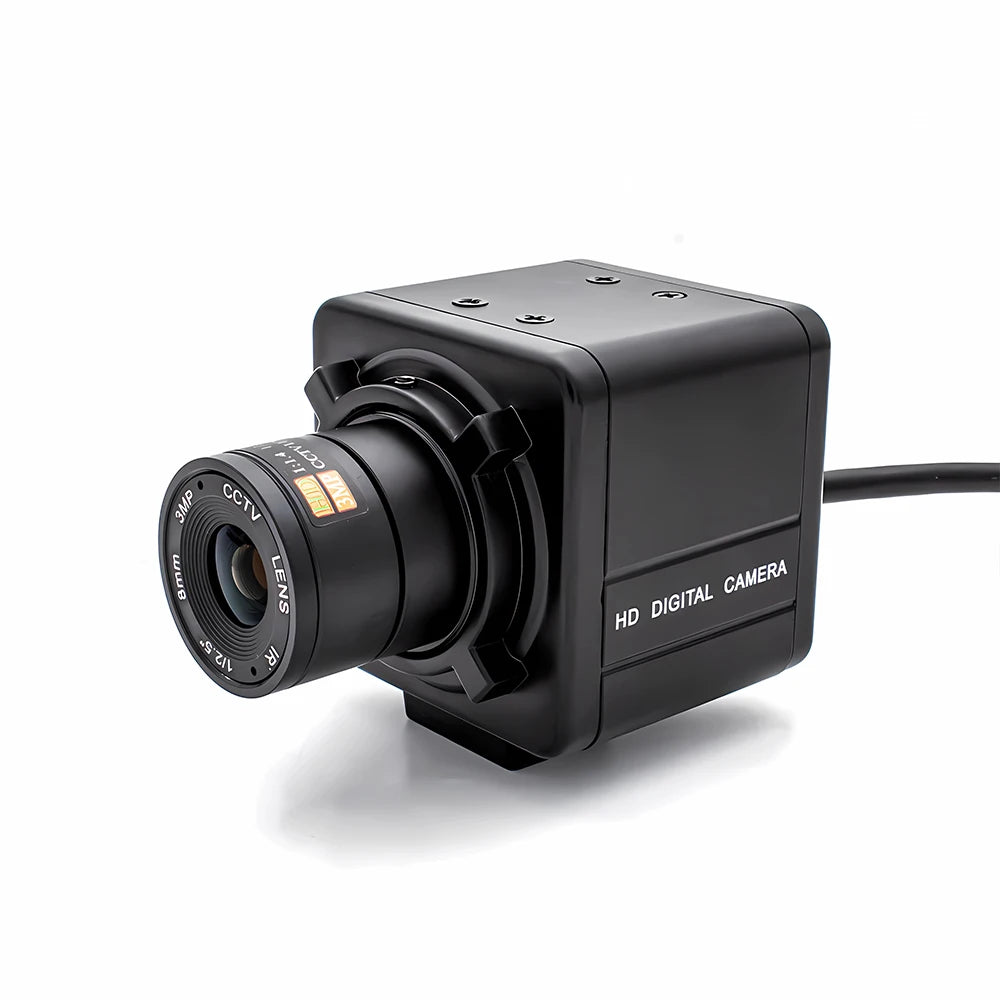

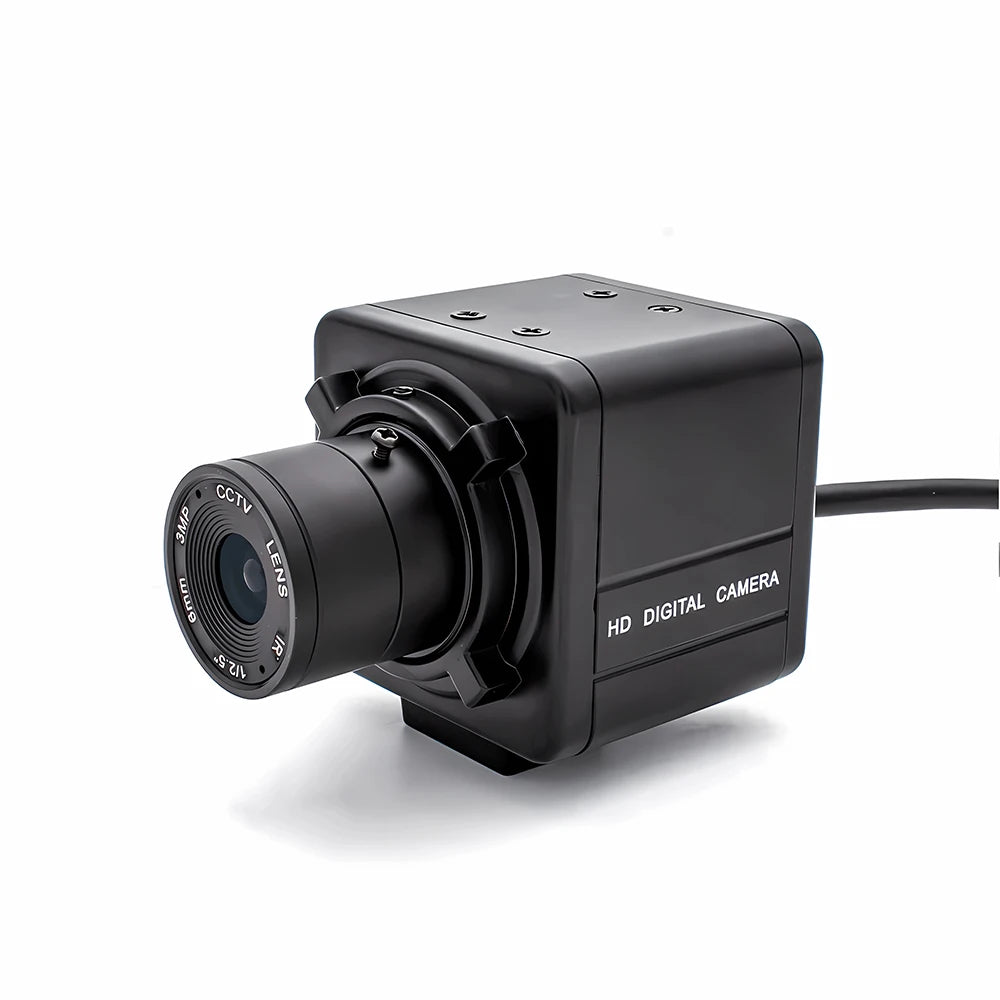

WGWK 4K CMOS POE Digital Live Stream Camera 3/4/5/8MP HD Security Protection Webcam Industrial 2.8/5-100mm Manual Varifocal Lens

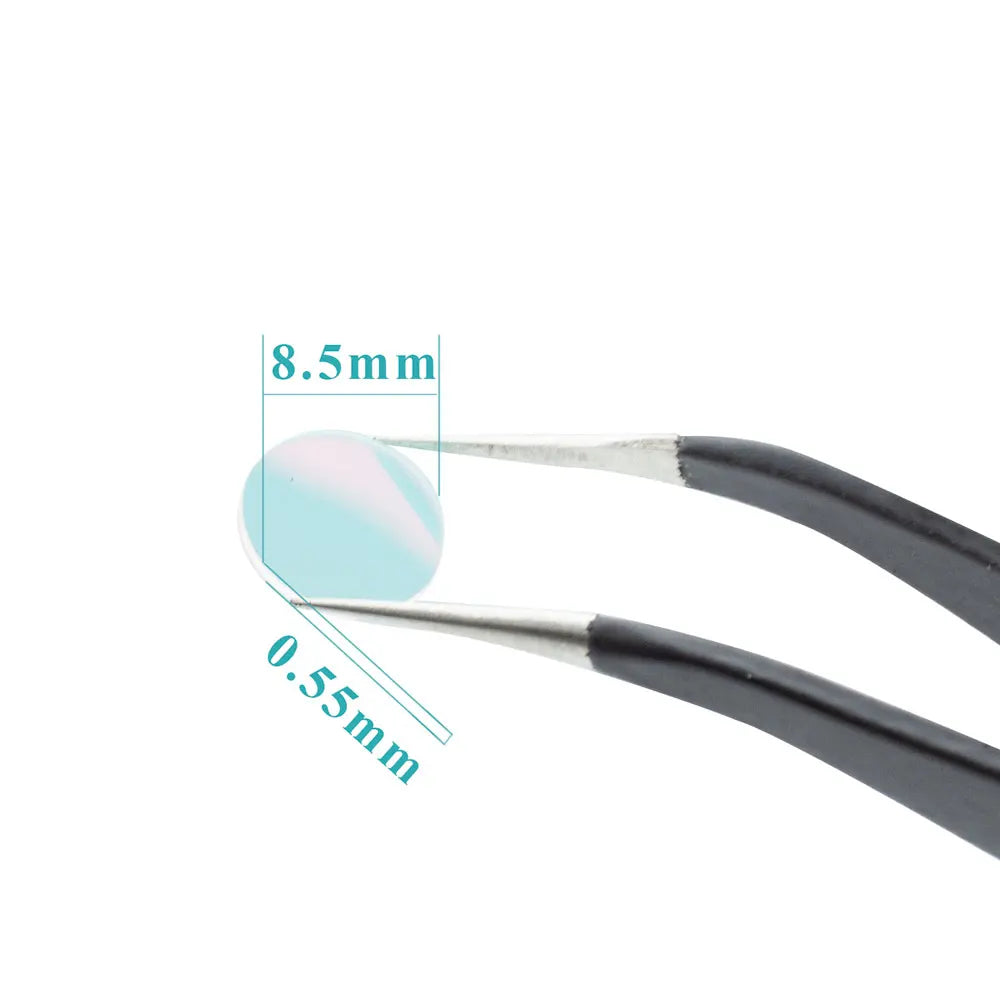

Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm

If you need it, please contact customer service in time!

Contact customer service to change the color of the camera housing (Red/Blue)

And get a free camera stand when you purchase two or more

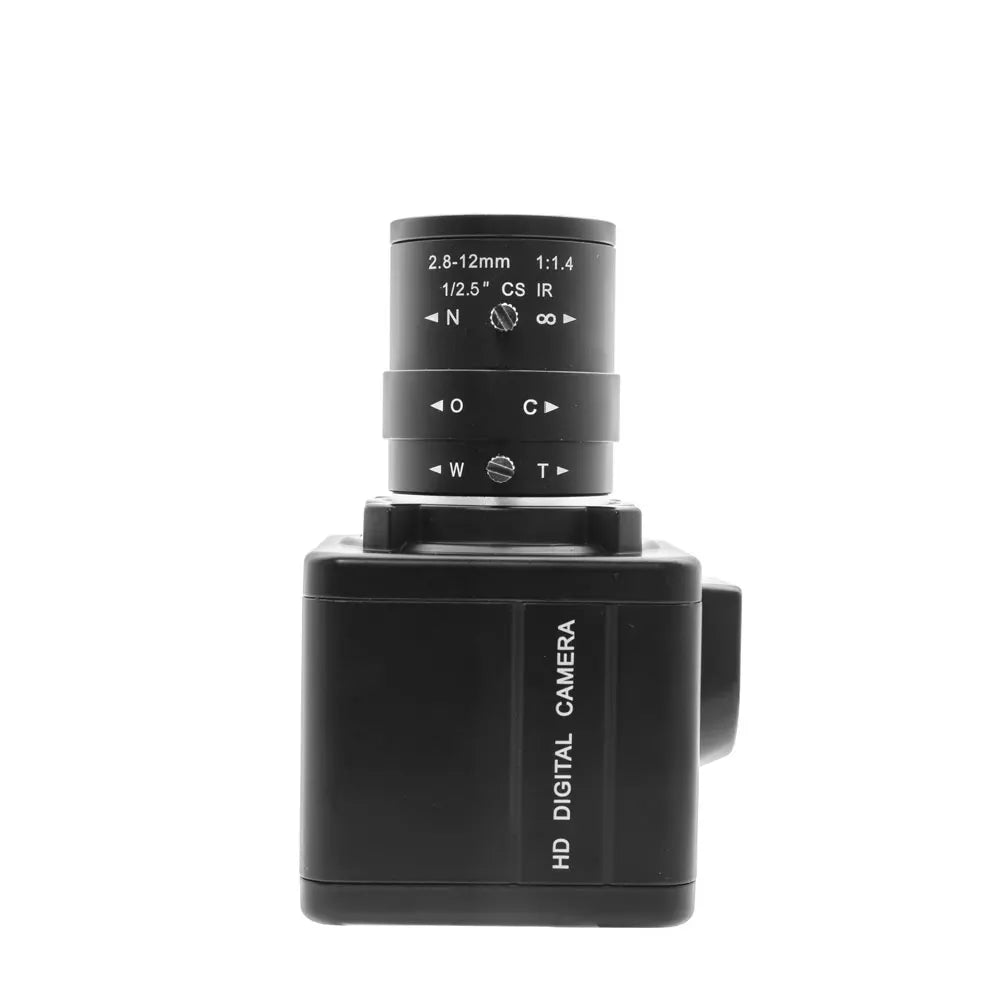

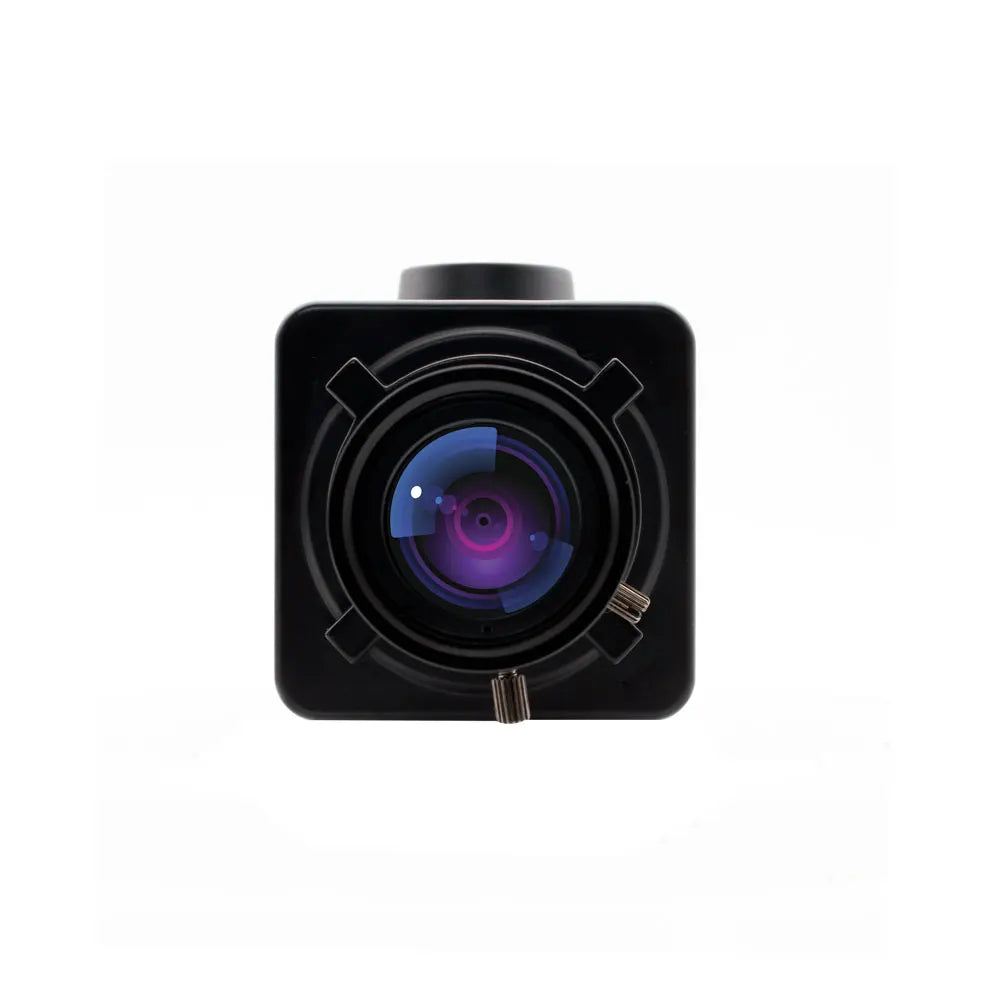

Lens interface: CS
Exposure: manual
Color：Black
Material:Metal

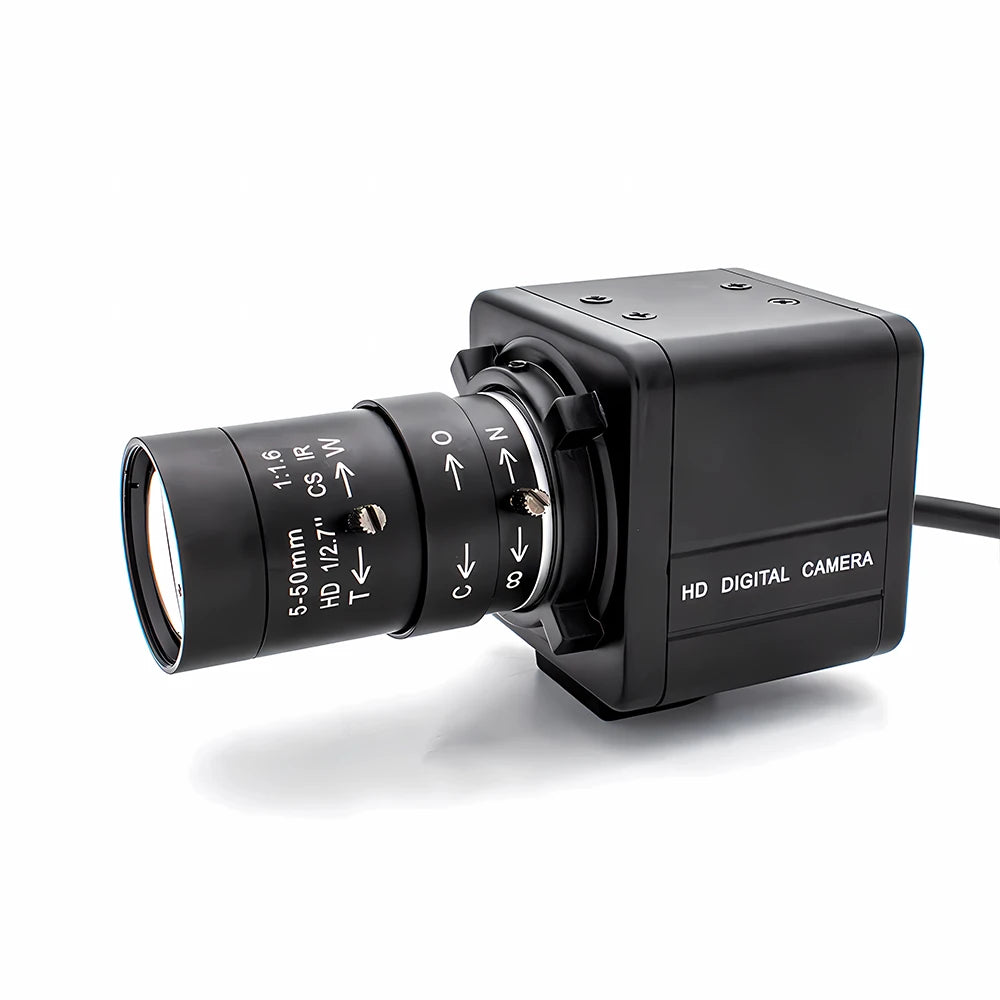

Lens: 2.1mm, 2.8mm, 2.5mm, 2.8-12mm, 4mm, 5mm, 6mm, 5-50mm, 6-60mm, 5-100mm

-3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;

Why H.265?

H.265 is a new video coding standard that delivers higher-quality network video with limited bandwidth, requiring only half the original bandwidth to play the same quality video.

About RTPS

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

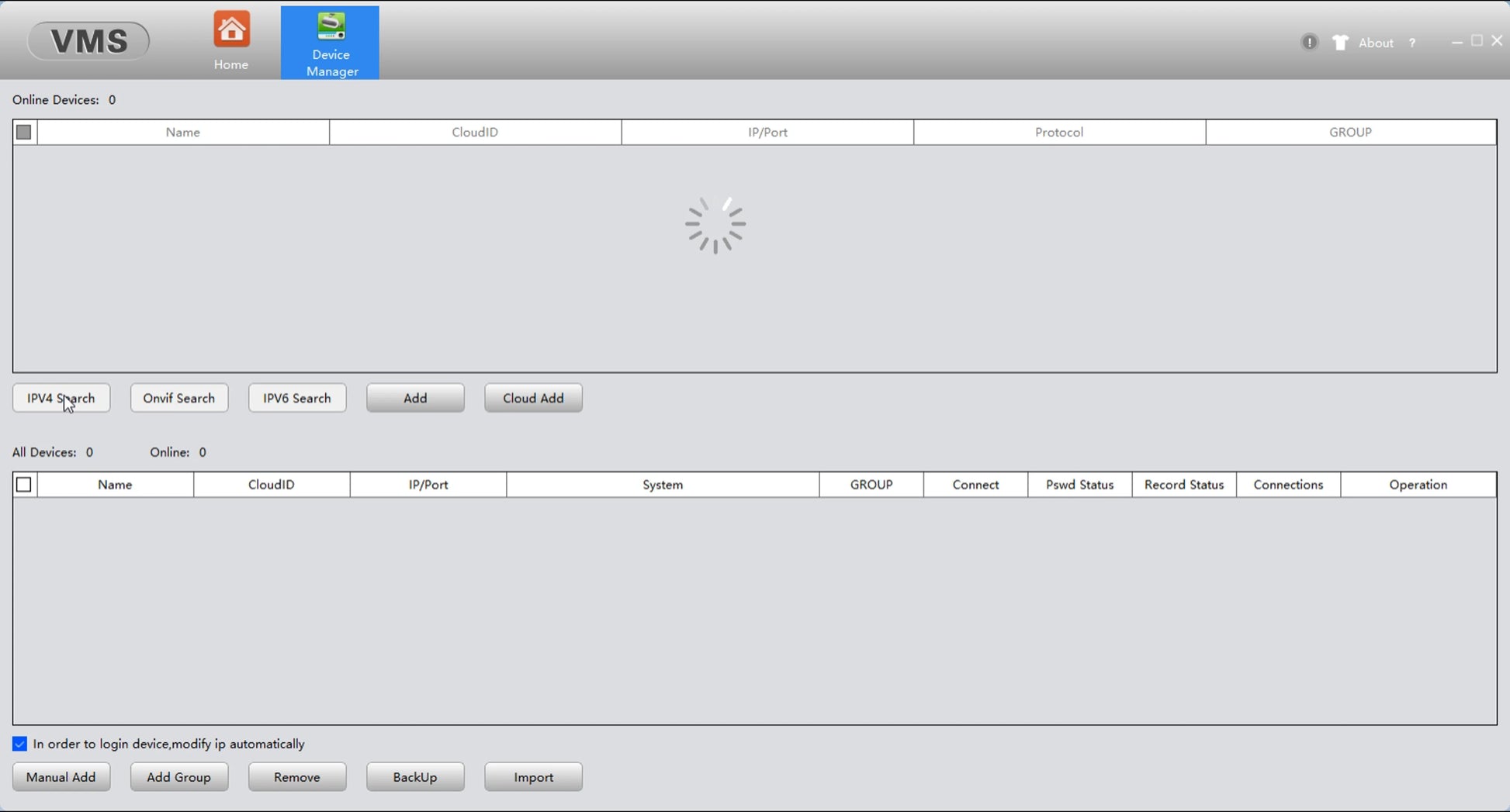

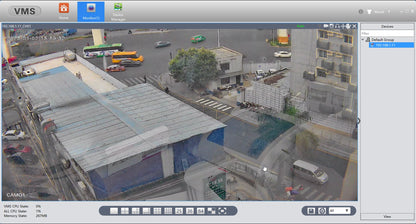

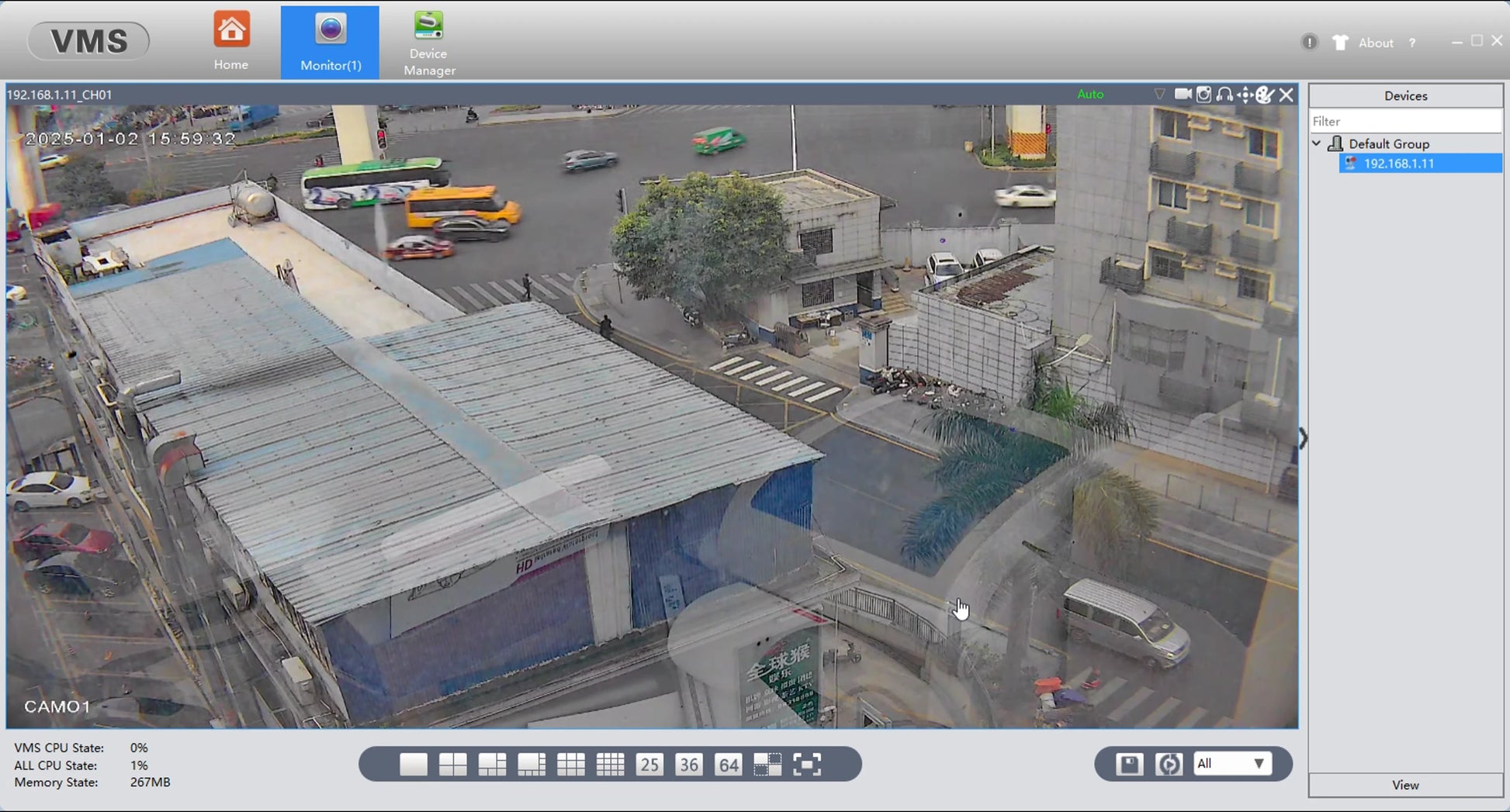

Step 1 : Install VMS

VMS Computer Client: https://download.xm030.cn/d/MDAwMDE2OTA=

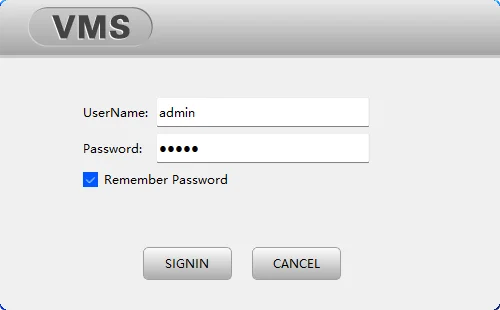

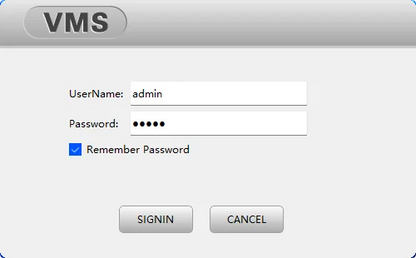

Step 2: Login VMS

UserName: admin,Password:admin

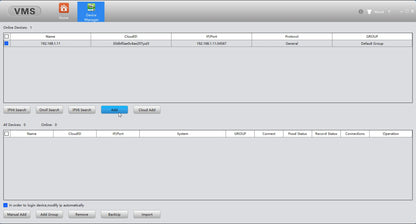

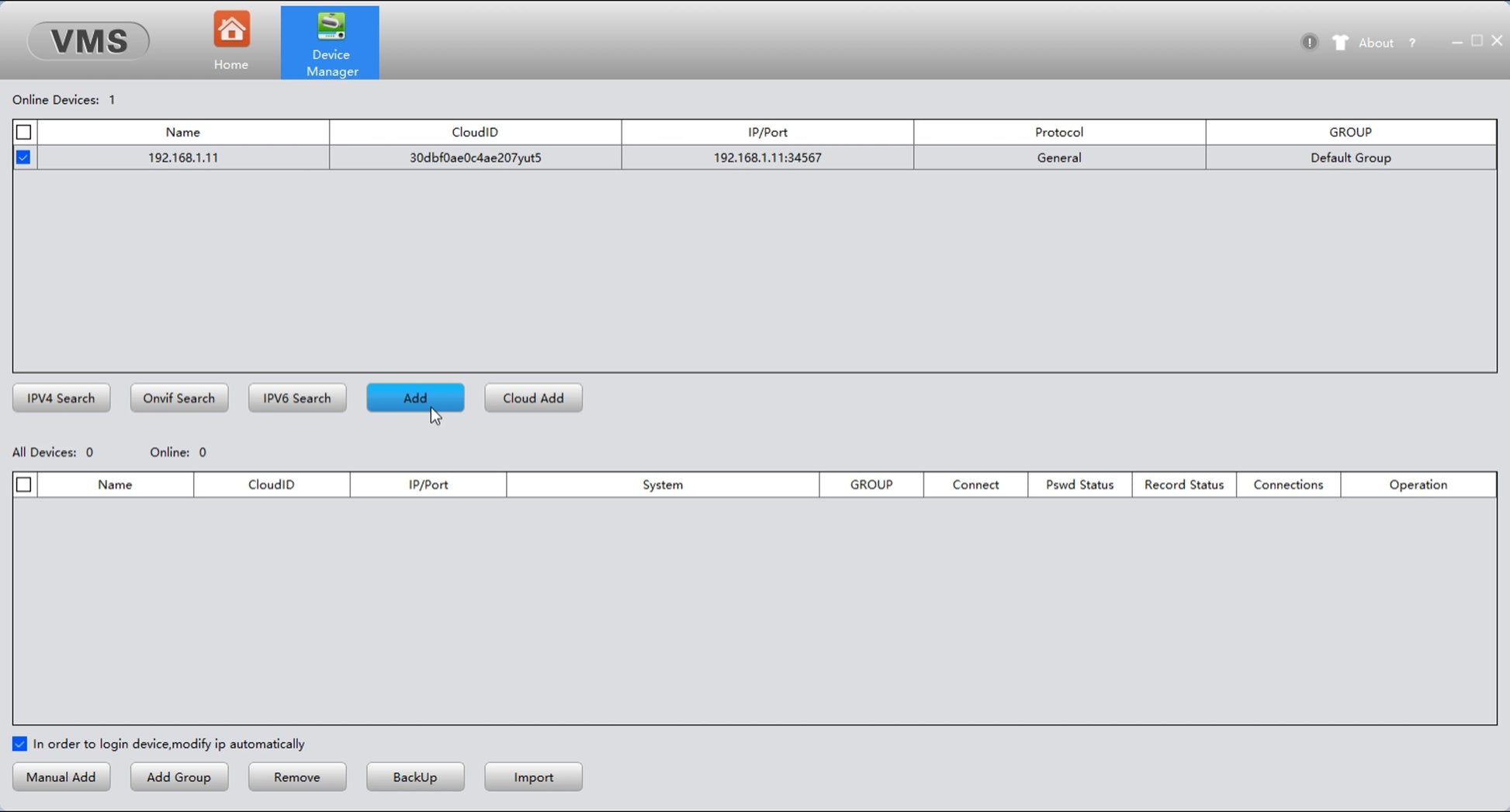

Step 3: Find your camera and add

APP download: Search XMEye in Apple Store
