Corne V4 Wireless Bluetooth Dual Mode Keyboard Ergonomic Customized Zmk Split Keyboard Magnetic Shell Gaming Office Keyboard

Specifications

• Specifications

• Product name: Split Keyboard kit

• Color:Black

• Connection method: bluetooth Wireless

Function

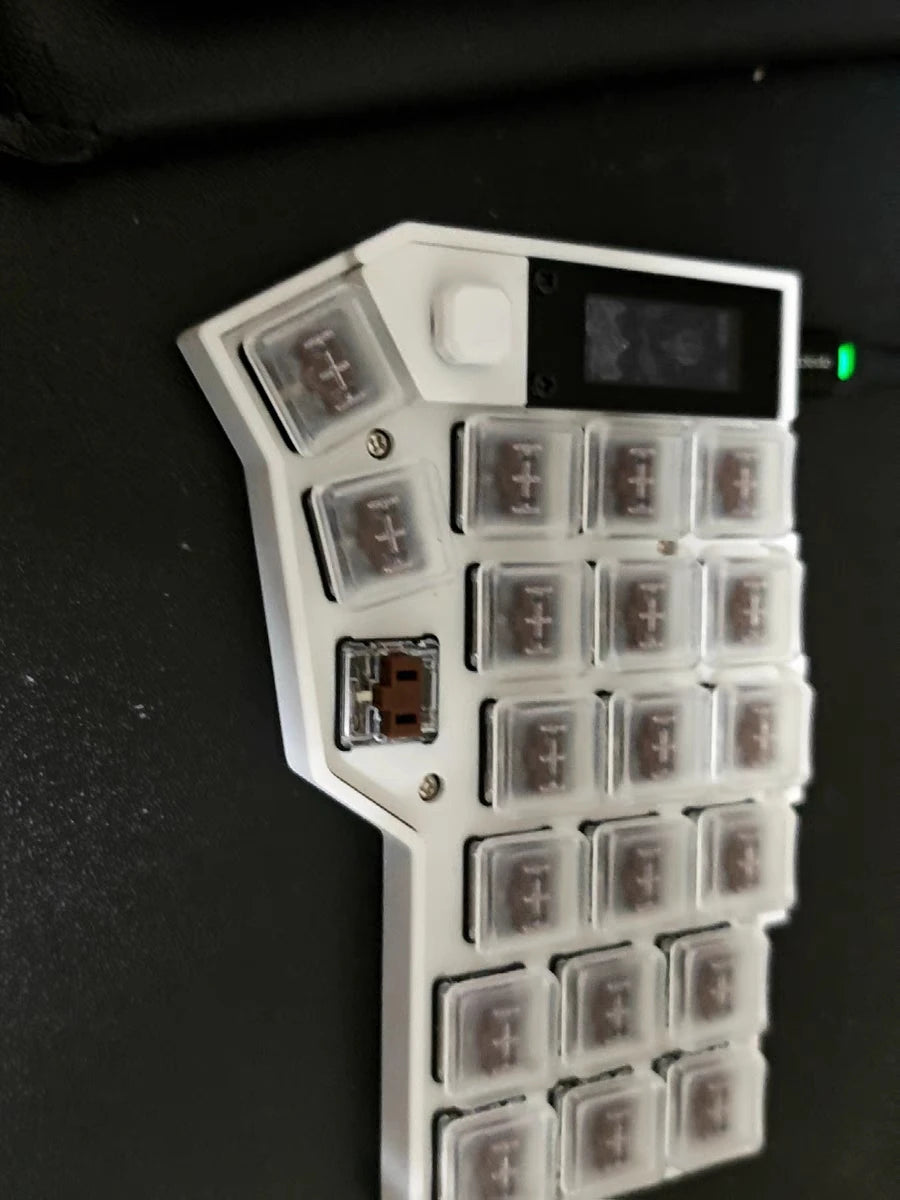

• 1. The screen is a nice!view ultra-low-power LCD screen, consuming virtually no power. The screen displays keyboard status, current Bluetooth channel, connection history on the current Bluetooth channel, whether a connection has been established on the current Bluetooth channel, current layer, battery level, and typing speed.

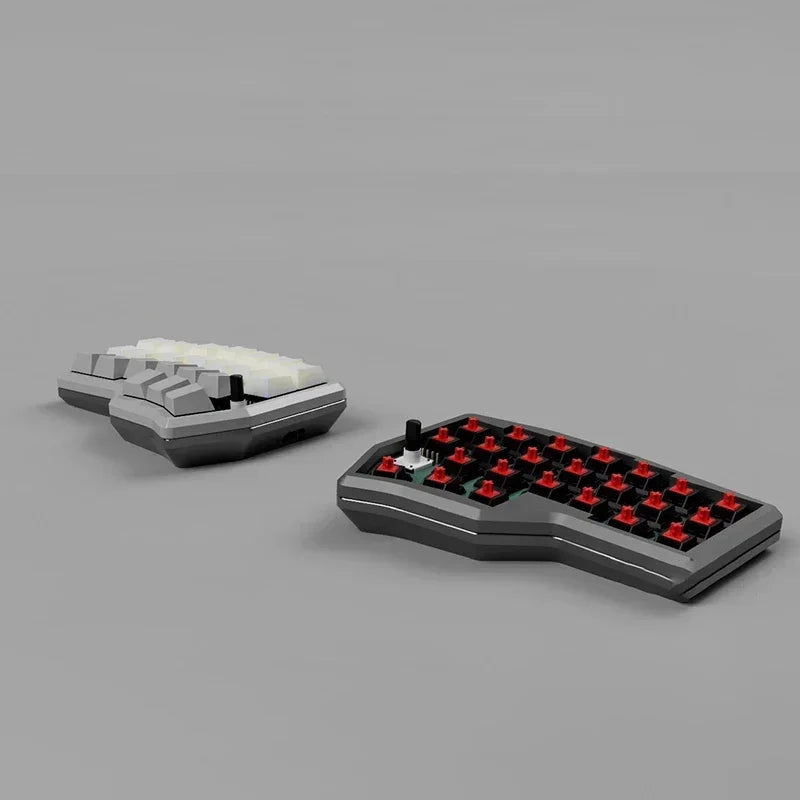

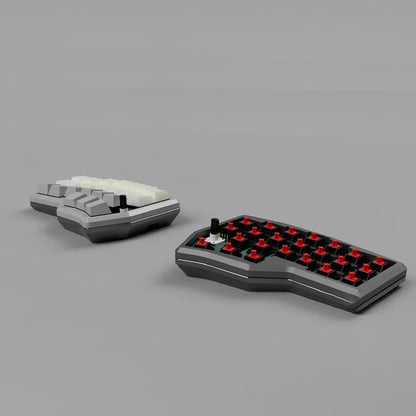

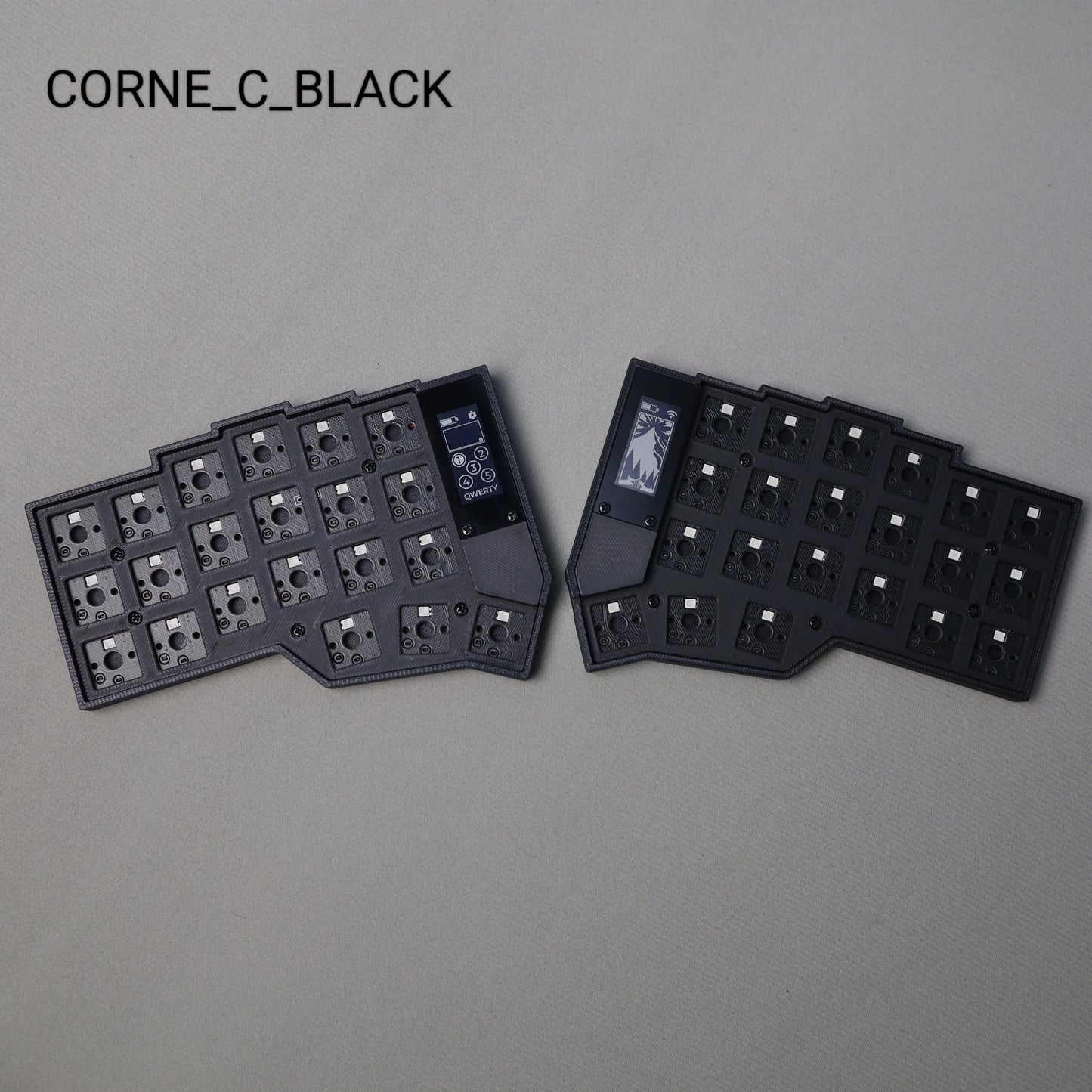

  2. Version B has a screen and a rocker switch on the right side, version C has a screen but no rocker, and version D has neither a screen nor a rocker. The keyboard has a reserved GPI0 pad for expansion.

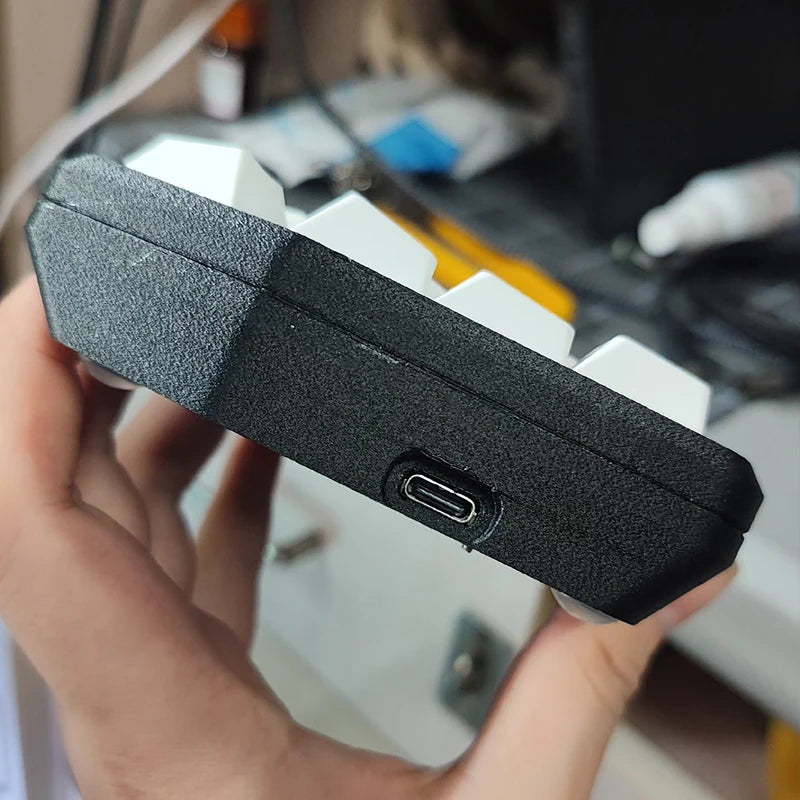

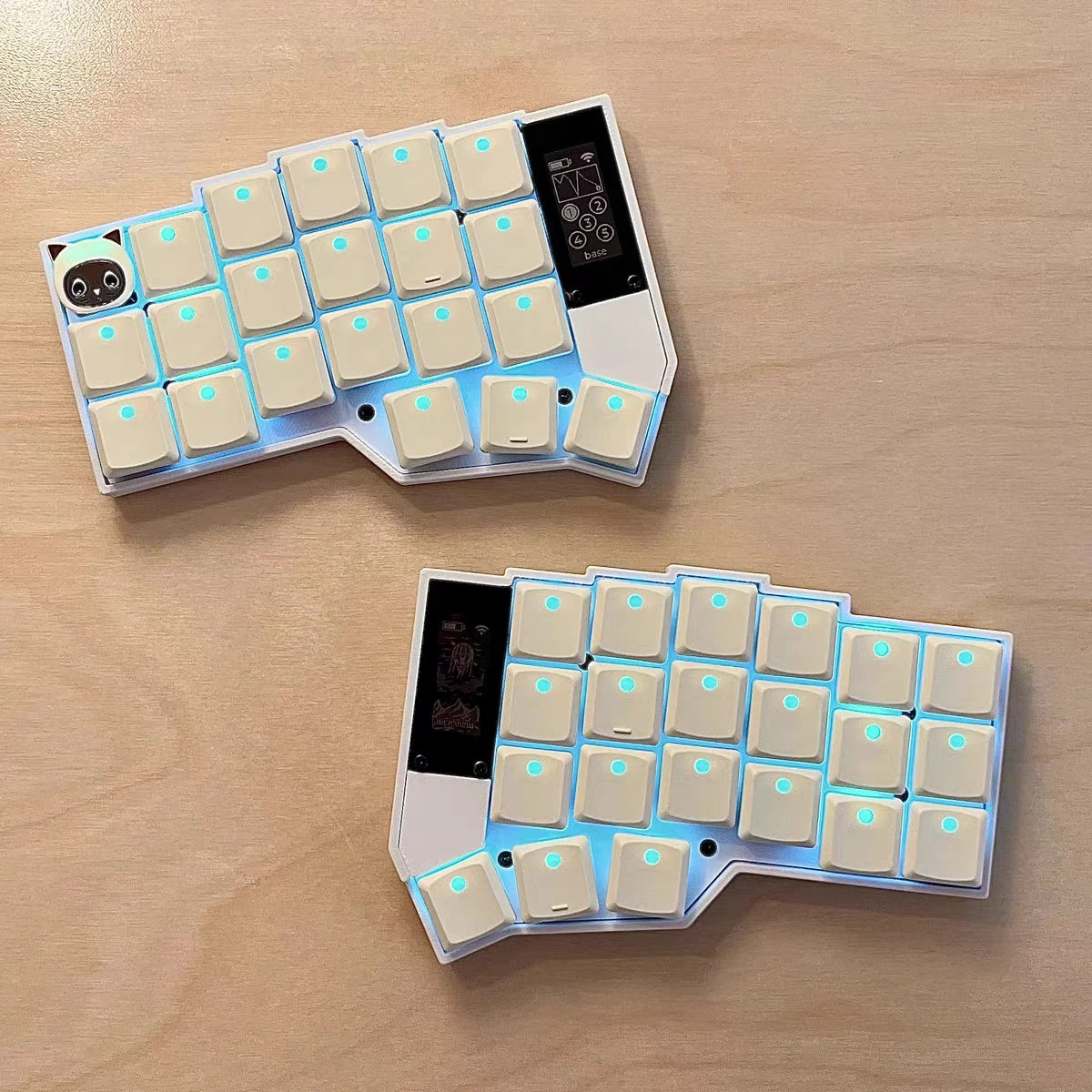

  3. The keyboard has RGB backlighting, but it's quite power-hungry, making it a bit less practical. It's not recommended when powered by batteries, but it can be left on all the time when connected via USB.
  5. The six buttons on the left and right sides of this PCB can be removed to create a corne3x5 version. The corne35 housing is not yet complete, so please be patient.
  6. The battery is 180mAh, but I tested it at 200mAh, with a battery life of approximately 166 hours. Considering the keyboard's automatic sleep mode, the actual usage time is around 20-30 days. 7. The switches support Kaih Choc V1 and Choc V2 (1353).

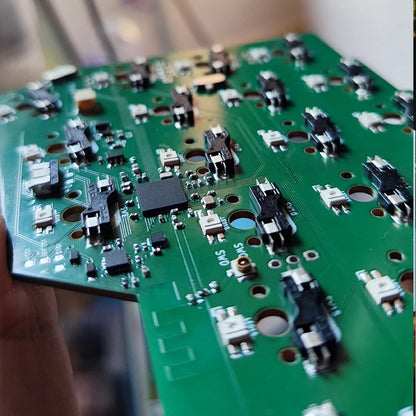

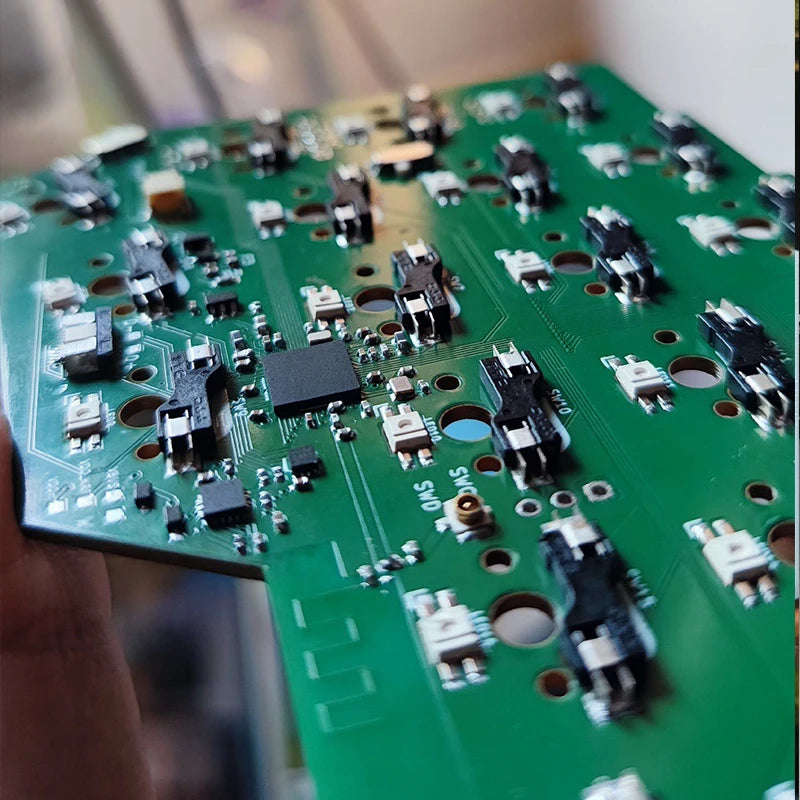

  8. Hot-swappable switches make it easy to change switches. The keyboard uses Kaih 1350 hot-swappable switches.

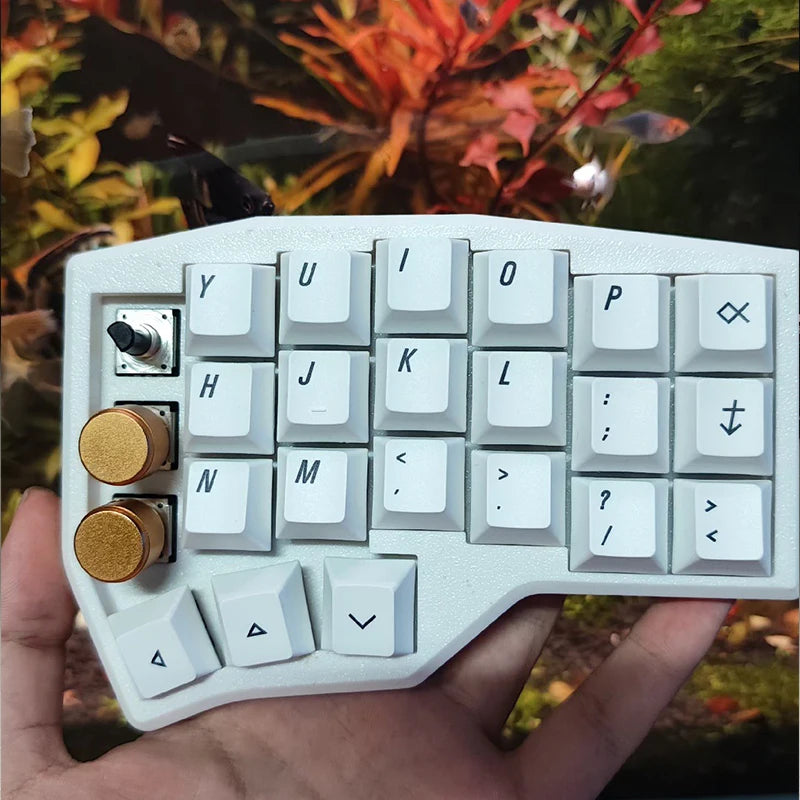

  9. The knob defaults to volume adjustment. The joystick's first layer is a directional key, and layers 1 and 2 control the mouse pointer. However, it's far less user-friendly than a mouse and can't replace it. It's only for emergency use.

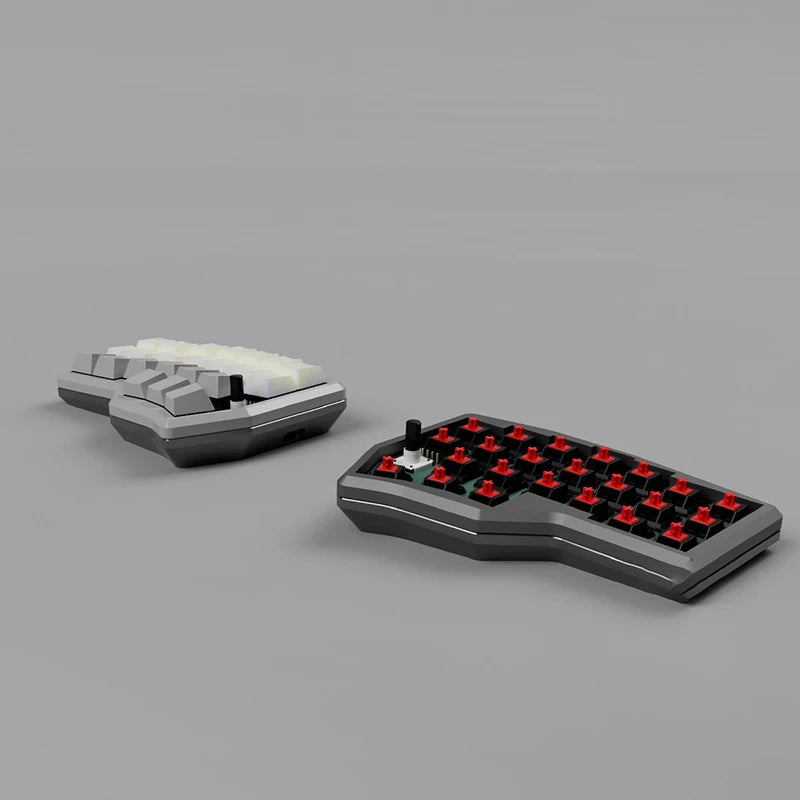

  10. A model file for the housing is provided, and users can also print their own replacement housings.
  11. The keyboard code library is available on GitHub for self-modification and compilation. Use ZMK to compile the keyboard firmware.
